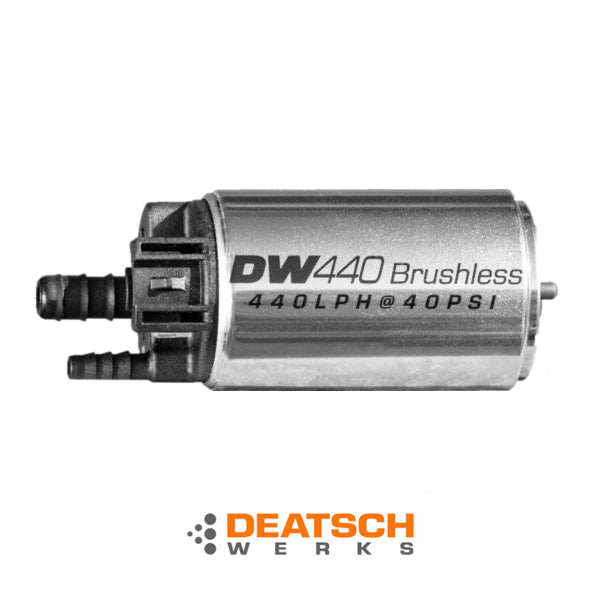

DW440 Brushless In-Tank Fuel Pump Kit

Deatschwerks DW440 Brushless Kit

The DW brings brushless pump technology INTO the fuel tank. With a total height of only 4 inches (102mm), it is the only highflow aftermarket brushless pump that is easily retro-fitted into an OE pump module. Brushless technology reduces friction and heat, increases effeciency, vastly improves pump lifespan in ethanol and methanol fuels, and allows higher voltage inputs for increased flow. The pump support 1000hp on gas and 750hp on e85.

• Fits for: Universal
• Capacity: 440 liters per hour at 60 PSI with 13,8V, 640 lph at 40 PSI with 20V
• Inlet Fitting: 8,5 mm ID, 11,0 mm OD
• Outlet Fitting: 3/8" hose clamp
• Impeller Design: Single scroll composite turbine
• Content: Compact size is optimized for in-tank use
• Info: Universal bulkhead harness and fitment kit included
• E85 Suitability: Compatible with all fuels including methanol and e100

All DeatschWerks fuel pumps undergo a multi-stage performance test to ensure the highest standards. This process, carried out by trained technicians, gives consumers the assurance that they will not buy any off-the-shelf product.
The performance tests include:

• Flow at pressures of 40 psi, 60 psi, 80 psi, 100 psi- Power consumption at each pressure
• PRV activation point
• Check valve function
• Cavitation
• Quality control

The DW C101 Brushless Pump Controller is included with the DW440 LPH in-tank fuel pump kits. This controller accepts an 8-22V DC input and creates a digital signal to allow effecient and precise speed and torque control of the DW440 pump. The controller is available in 3 configurations: C102 (dual speed) and C103 (pwm controlled). Optimized for use with the DW440 brushless pump Digital thermal protection.

• Optimized for use with the DW440 brushless pump
• Variable timing for optimized torque and speed
• Designed for compatibility with voltage boosters
• Bulkhead wiring kit included for in-module retrofit
• Digital thermal protection

• Weight: 11.8oz (336g)
• External Materials: Anodized T6061
• Voltage Input*: 8 Volts min, 22V max (**high load switch/trigger suggested for voltages above 18V)
• Max Current: 40 AMP
