Honda K-Series fuel rail

Nuke Performance fuel rail for the Honda 4cyl K-Series engines, oversized internals, lightweight design, and equipped with our unique injector safety clips.

The Honda 4cyl K-Series fuel rail is delivered with brackets for all the Honda K-series intakes and allows you to go with AN fuel lines and aftermarket injectors for your classic Honda engine.

•  Lightweight fuel rail that fits Honda K-series engines
•  To be used with Bosch EV14S type injectors

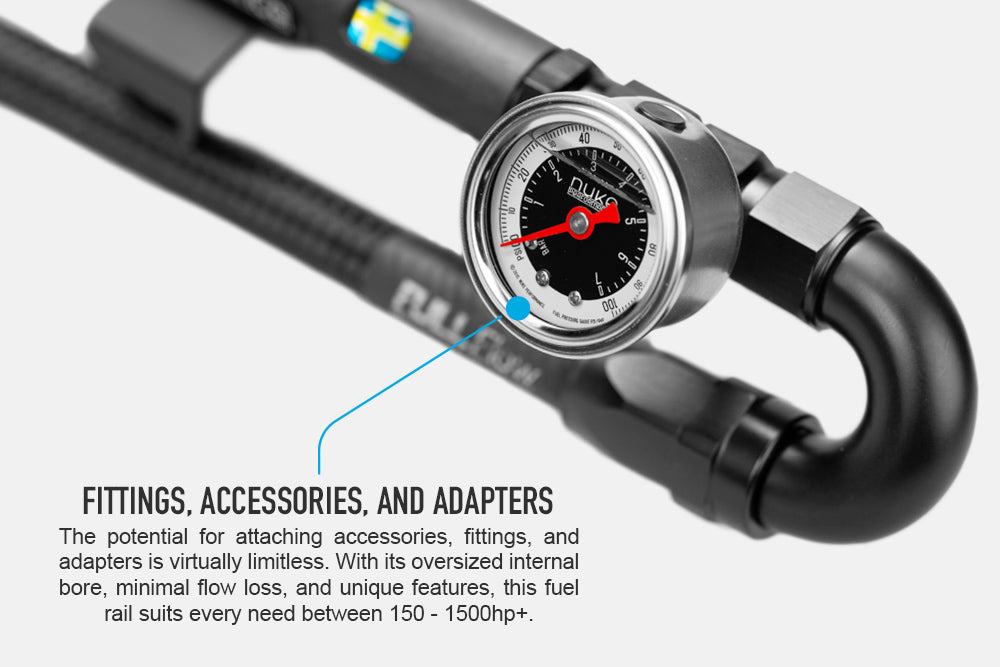

•  AN-8 ORB threads in both ends enable a high fuel flow

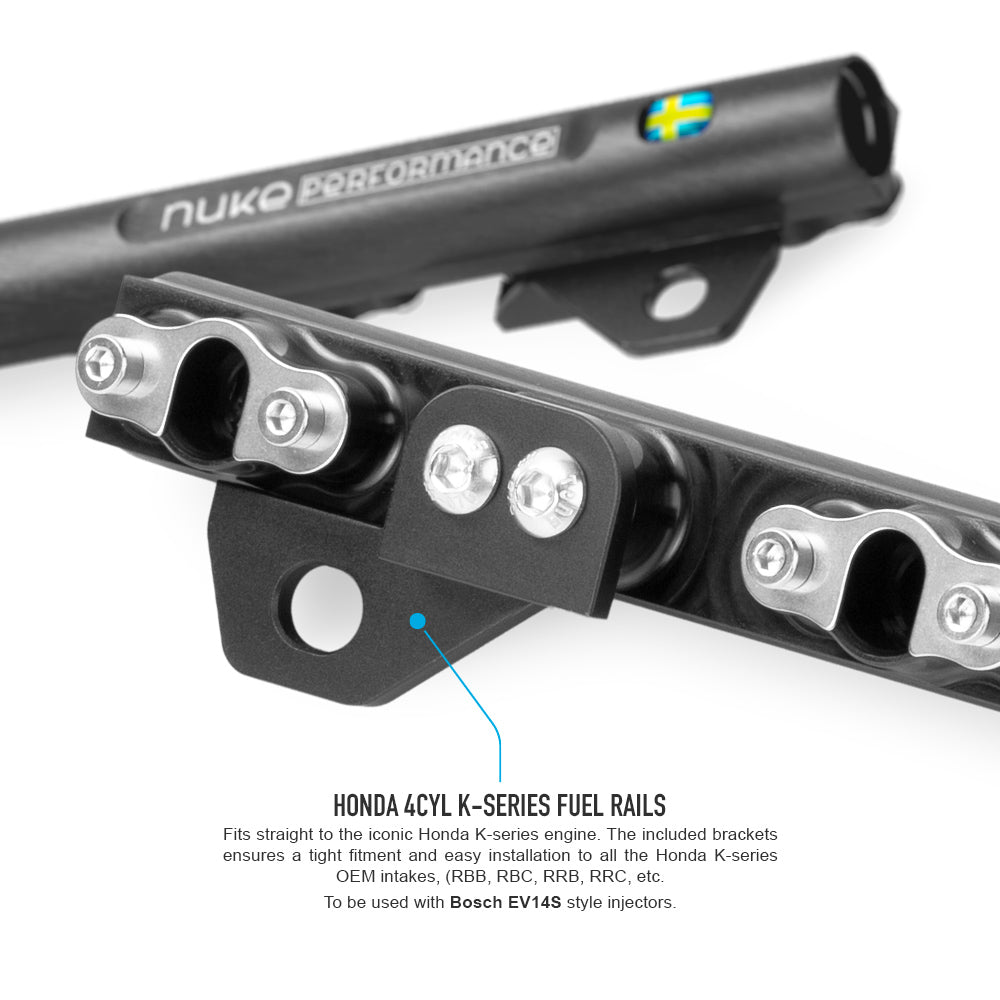

•  Delivered with brackets for easy mount to the Honda K intakes
•  AN-6 ORB side outlet/inlet for optional applications
•  Safe for all types of fuels, including alcoholic fuels such as E85

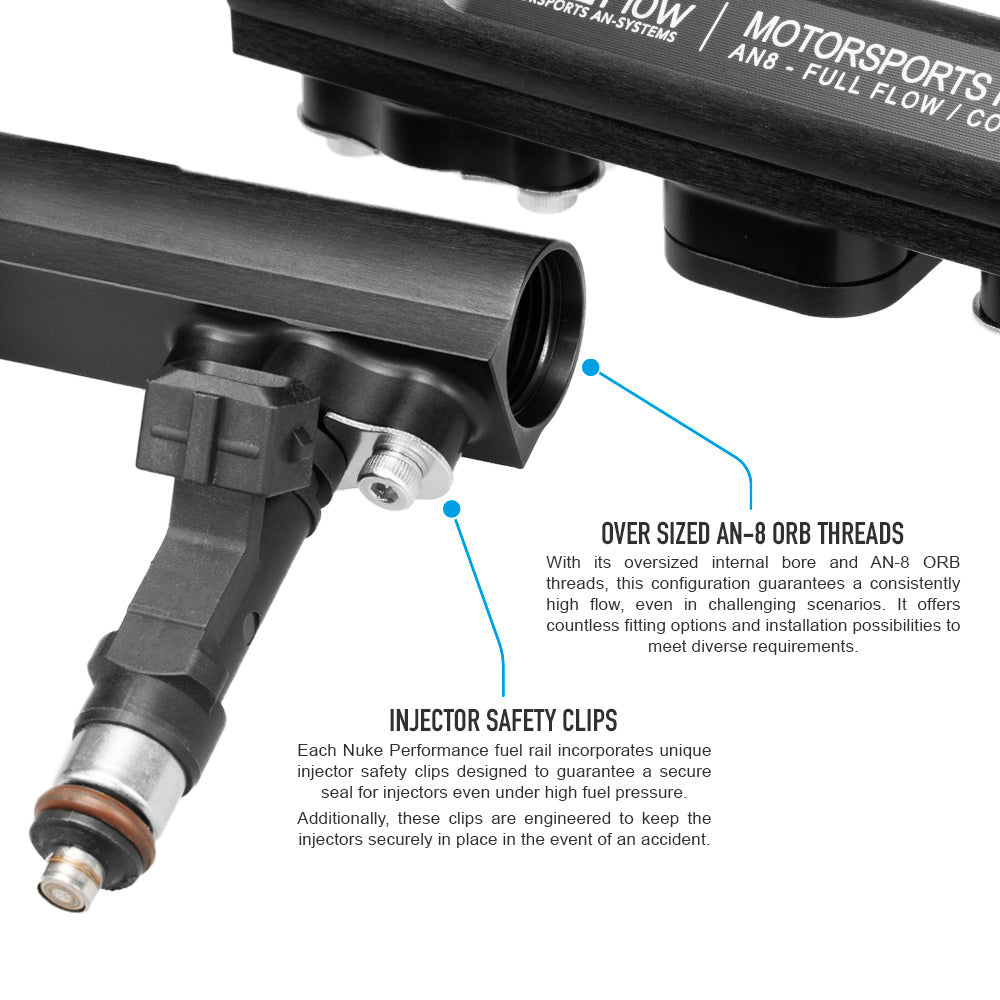

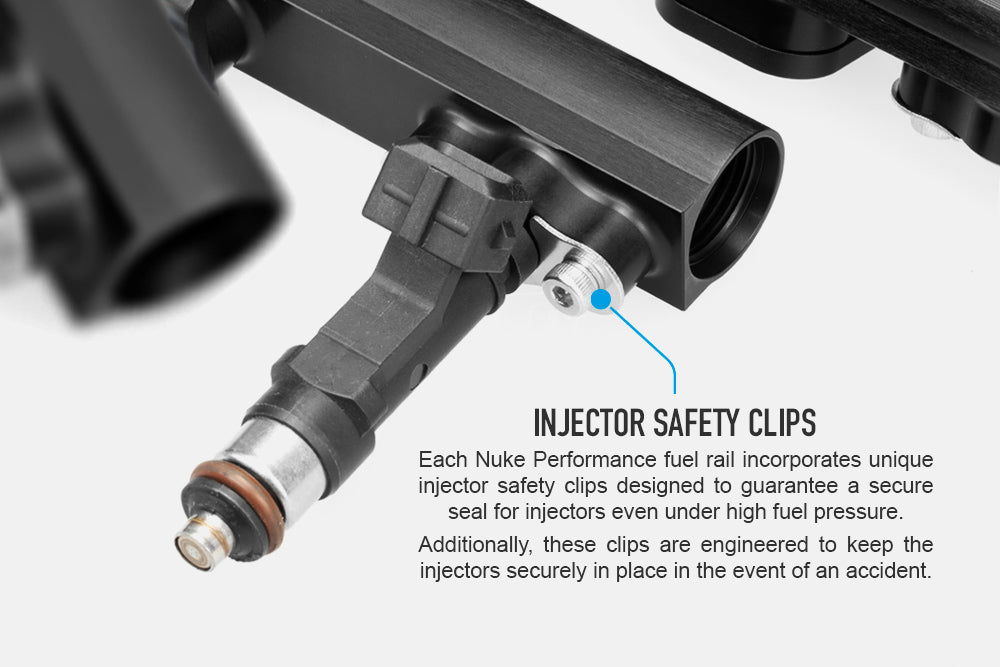

The Nuke Performance's newest generation of fuel rails grants an easy fit to your engine with an extremely lightweight design. It uses the unique injector safety clips that fuel rails from Nuke Performance have become famous for, which grants a leakproof seal even during a crash where the fuel rail would get torn out of the intake manifold.

Perfect fitment for all OEM Honda K20 and K24 intake manifolds, such as RBC, PRB, RBB, etc. Delivered with the needed hardware to mount to the intake.
The Nuke Performance Honda 4cyl K-Series fuel rail is delivered with brackets for the K engine intake.

• Honda RBC OEM intake 2007-2011
• Honda PRB OEM intake 2001-2006
• Honda RBB OEM intake 2002-2008

Please be aware that this fuel rail is incompatible with the K20C1 engine; these engines use direct-injection and are not compatible with this fuel rail. The Nuke Performance fuel rail fits all the above OEM intakes and should also fit aftermarket ones built to OEM specifications.

Nuke Performance Honda 4cyl K-series fuel rail Specifications:
For more information about specifications, view the product sheet.

 * not included, make sure to select the needed fittings when placing an order
 ** old generation with smaller internals and NPT ports

Nuke Performance Honda 4cyl K-series fuel rail includes:

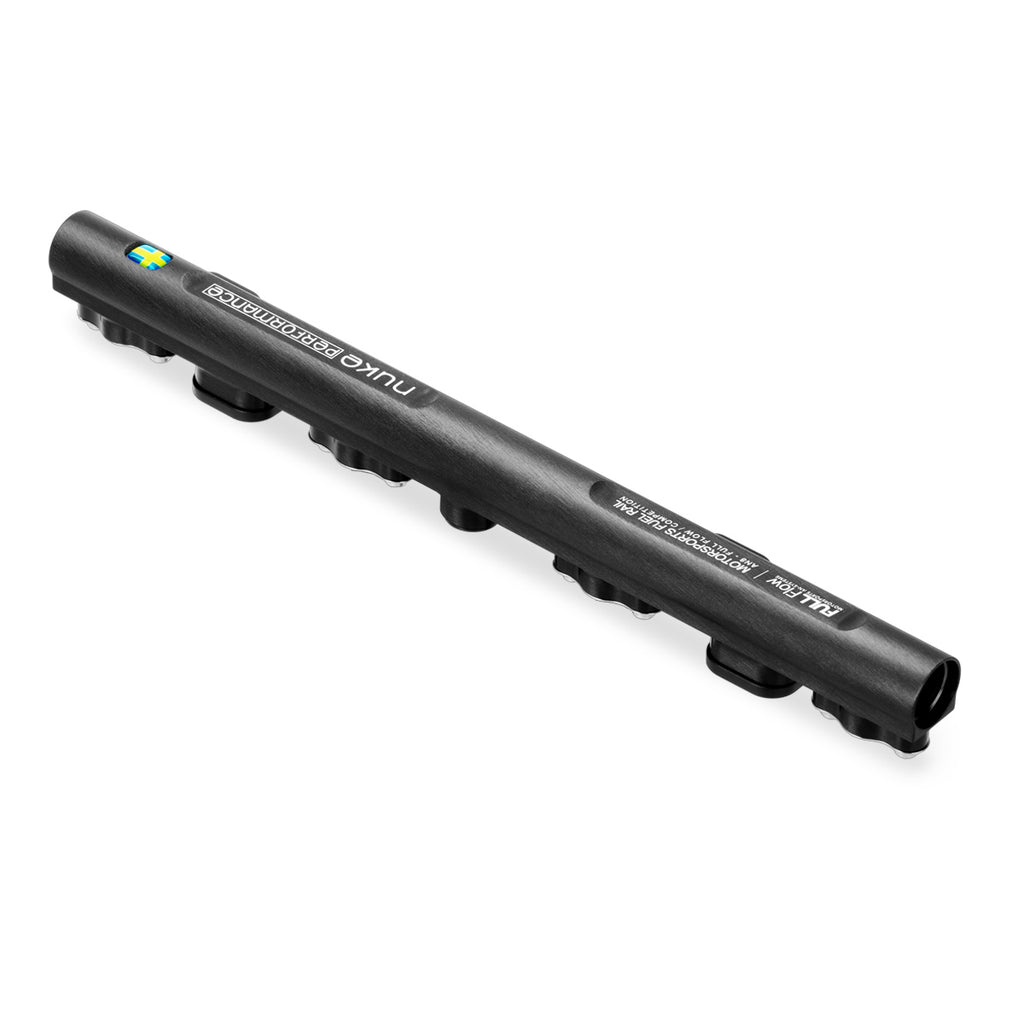

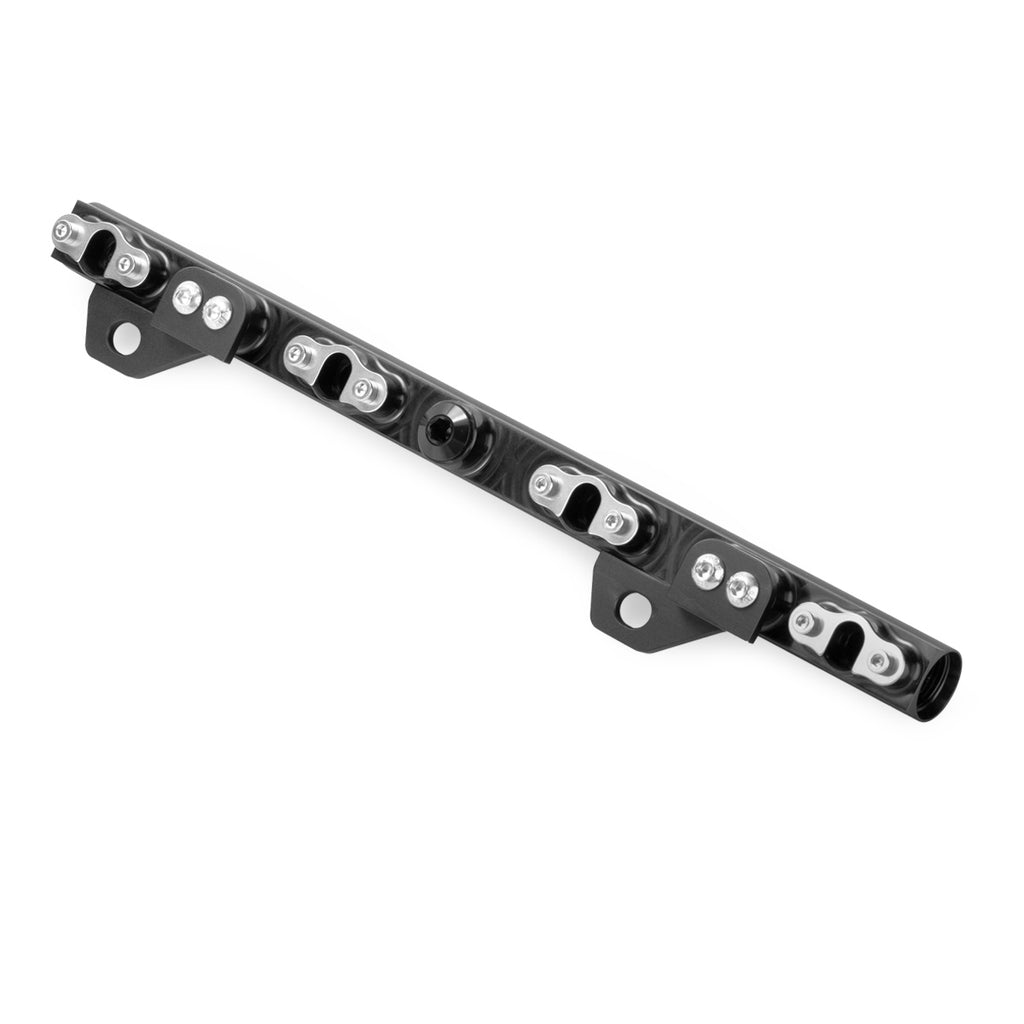

1 x AN-8 ORB Full Flow fuel rail profile for Honda K-series
2 x Aluminum brackets for Honda K-series
1 x AN-6 ORB Plug
4 x Nuke Performance Injector safety clips
8 x MC6S M4x6mm stainless steel bolts
4 x K6S M6x10mm stainless steel bolts
2 x K6S M6x12mm stainless steel bolts

 Download Product Sheet (.pdf)
