Wireless Wheel Controls - 10 Channel (8 Switch + 2 Rotary) CAN

10-channel (8 Switch +2 Rotary) system with Easyfit Transmitter which bolts straight onto your steering wheel hub and fits all standard bolt patterns on 6 x 70mm, 6 x 74mm and 3 x 50.8mm PCD steering wheels.

Kit Includes:

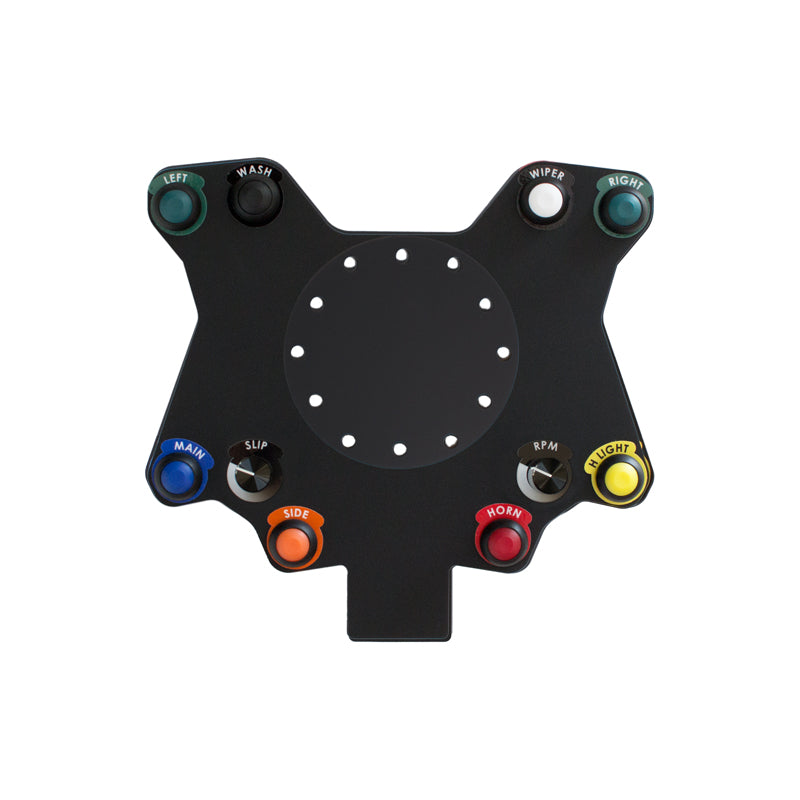

• Easyfit Transmitter assembled to button plate with 8 soldered pushbuttons and 2 soldered Mil-spec calibration switches all fitted with bespoke nut covers
• Battery

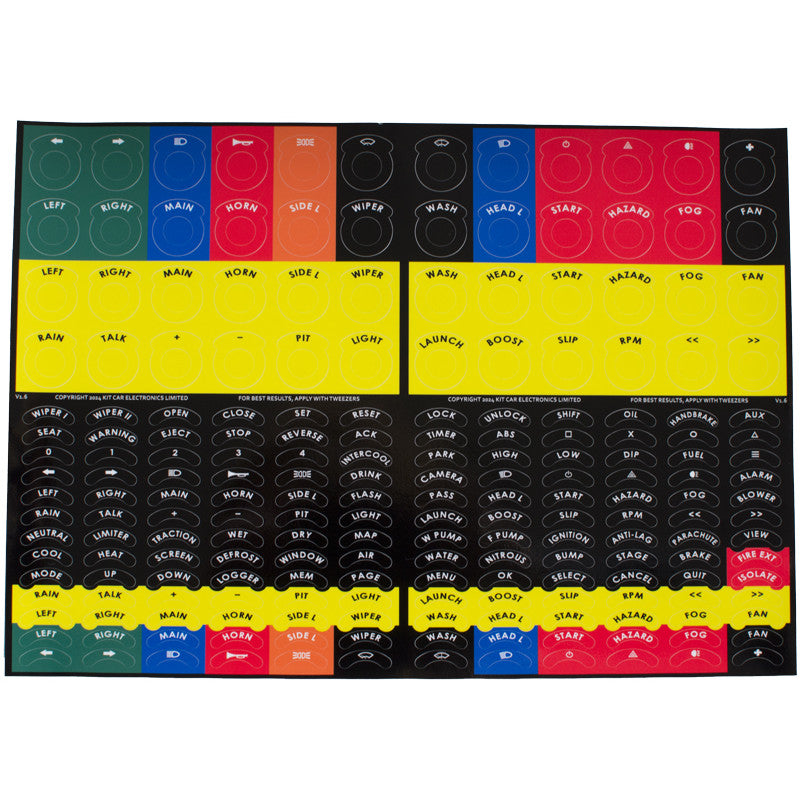

• Decal sheet
• Receiver with AMPSEAL connector
• Wiring Harness
• USB cable
• Installation instructions
• Optional 120 Ohm CAN Termination Resistor included.

Wireless Module Types

CAN :

• Full low-side switching of up to ten, 600mA loads all via CAN with endless re-configuration possibilities, using the included free programming software.

• Two analogue channels for wireless potentiometer control such as Launch, Traction, Boost Control and many more
• Seamless PDM/ECU or Dash Display integration. We can supply the kit with many different CAN Presets to suit Ecumaster, Link ECU, MaxxECU, Haltech and more.

• Includes a rainlight function, perfect for racing with dual solid light and 4Hz flashing hazard modes, and Flash-to-Pass to give a 2-second 4Hz headlight flash.

• Choose any combination of smart headlight, smart indicator, IVA fog light and rainlight modes or momentary and latching behaviour for each solid state channel.
• The Receiver measures 86 x 55 x 35mm and weighs 112g.
• At just 176 x 154 x 19-29mm, the fully assembled transmitter and button plate weigh just 240g including the battery!
