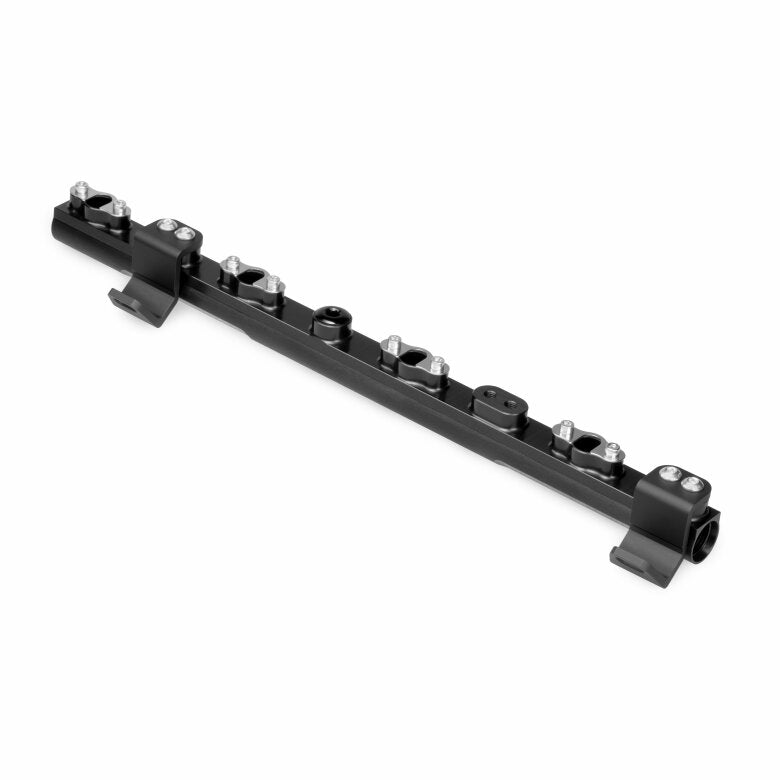

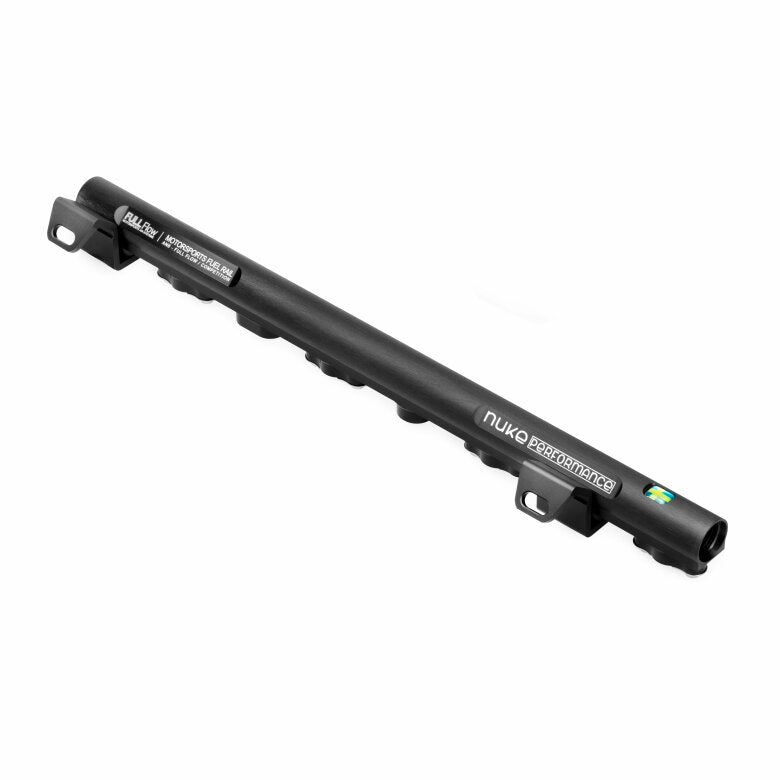

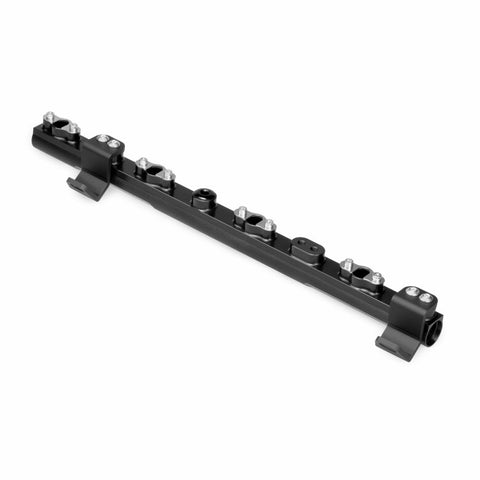

Nuke Performance fuel rail for the Ford Cosworth YB 4x4, oversized internals, lightweight design, and equipped with our unique injector safety clips.

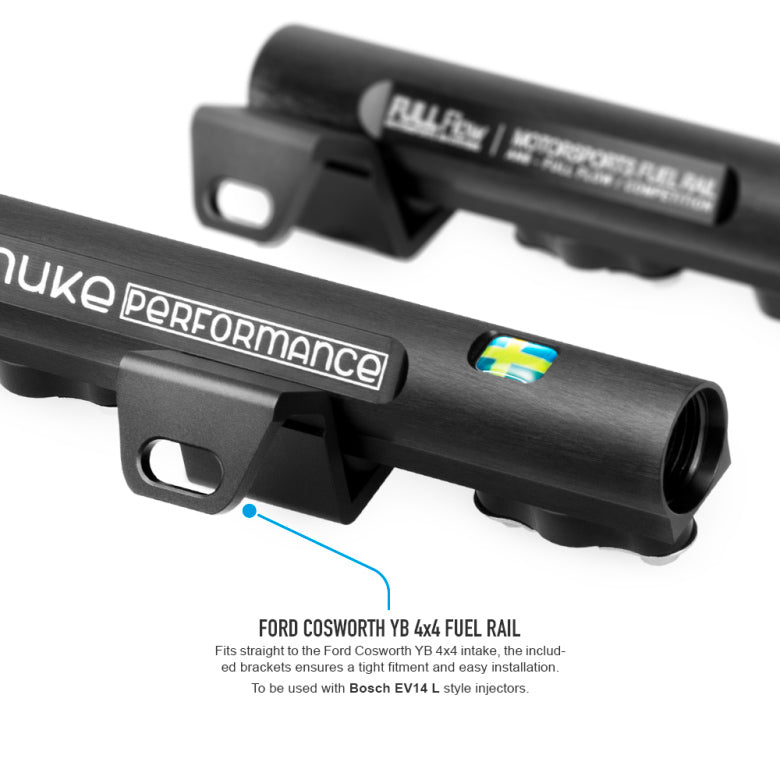

The Ford Cosworth 4cyl YB 4x4 fuel rail is delivered with brackets for the YB engine with YB intake and allows you to go with AN fuel lines and aftermarket injectors for your classic Ford engine.
Lightweight fuel rail that fits Cosworth 4cyl YB 4x4 engine
To be used with Bosch EV14L type injectors
AN-8 ORB threads in both ends enable a high fuel flow
Delivered with brackets for easy mount to the YB 4x4 intake
AN-6 ORB side outlet/inlet for optional applications
Safe for all types of fuels, including alcoholic fuels such as E85
Nuke Performance Ford Cosworth 4cyl YB 4x4 fuel rail Specifications:
For more information about specifications, view the product sheet.
| Delivered with brackets for | Ford Cosworth 4cyl YB 4x4 intake |
| Injector type specification | Bosch EV14 L style |
| End inlet/outlet threads | AN-8 ORB (view assortment) * |
| Additional port thread | AN-6 ORB (view assortment) * |
| Length | 397.50mm (15.65") |
| Height | 32.00mm (1.25") |
| Weight | 348.00g (12.27oz) |
| Fuel compatibility | Petrol, Gasoline, Ethanol, E85, E100, Methanol |
| For motorsports use | YES |
| Replaces old part # | Replaces 100-07-201 |
| Part # | 120-03-101 |
| EAN | 7340209506792 |
* not included, make sure to select the needed fittings when placing an order
Nuke Performance Ford Cosworth 4cyl YB 4x4 fuel rail includes:
1 x AN-8 ORB Full Flow fuel rail profile for Ford Cosworth YB engine
2 x Aluminum brackets for YB 4x4 intake
1 x AN-6 ORB Plug

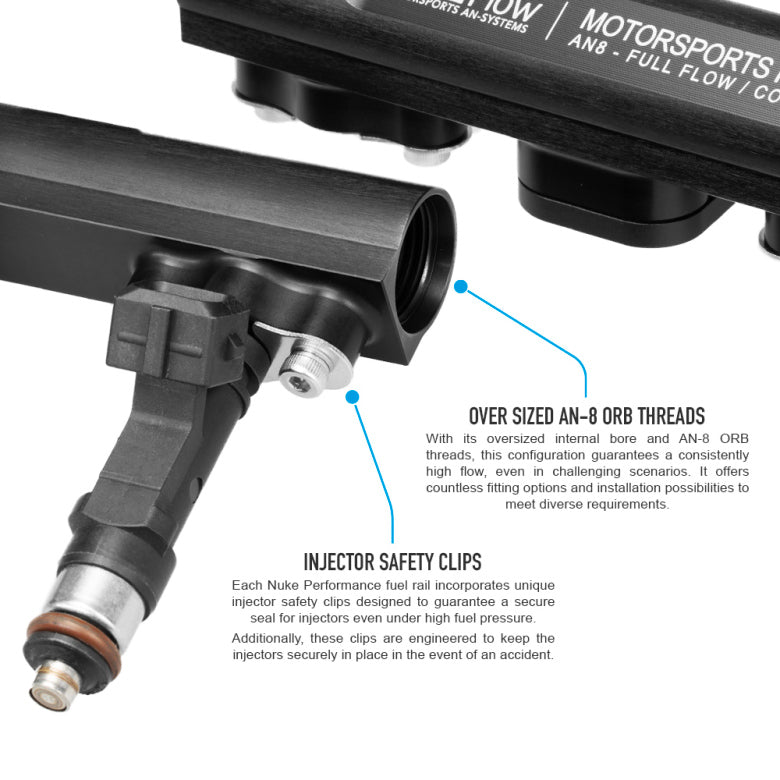

4 x Nuke Performance Injector safety clips
8 x MC6S M4x6mm stainless steel bolts
4 x K6S M6x10mm stainless steel bolts
2 x K6S M6x12mm stainless steel bolts
2 x M6 stainless steel washers
Download Product Sheet (.pdf)
