Hardware Features

HYBRID 16: 8 Internal relays rated to 15A at 12V which can be used for high or low-side switching of loads
HYBRID 16: Full solid-state low-side switching of 6 concurrent 600mA resistive or inductive loads, such as standard automotive relays, with built-in short circuit and overcurrent protection
SOLID-STATE 16: Full solid-state low-side switching of 14 concurrent 600mA resistive or inductive loads, such as standard
automotive relays, with built-in short circuit and overcurrent protection
2 analogue output channels for wireless 0-5V control such as multimap boost switching and traction slip control
CAN output for seamless PDM integration across all channels, compatible with all major CAN systems
Ultimate performance from a 10ms / 100Hz broadcast rate
Ultimate compatibility from 7 simultaneous CAN message formats (LSB, MSB and bitmasking) with free selection of base address, bus speed and identifier length
Range of driving and racing output channel modes
Re-configurable using the included FREEWheel USB programming software
AMPSEAL connector(s)
IP67-rated USB port with rubber cap
Flame-retardant ABS plastic
Fully conformal coated for environmental protection
Wireless wheelplate Transmitter battery life over 5 years with standard buttons, and over 2 years with lit buttons
Unique Transmitter ID prevents cross-talk and interference
0.7m wiring looms

Driving Features

Size & Weight

Easyfit Transmitter: bolts straight onto your steering wheel hub and fits all standard bolt patterns on 6 x 70mm, 6 x 74mm and 3 x 50.8mm PCD steering wheels
Easyfit Transmitter: 176 x 154 x 19-29mm, typically 220g including battery (excludes paddles)
HYBRID 16 Receiver: 121 x 66 x 40mm
SOLID-STATE 16 Receiver: 86 x 55 x 35mm

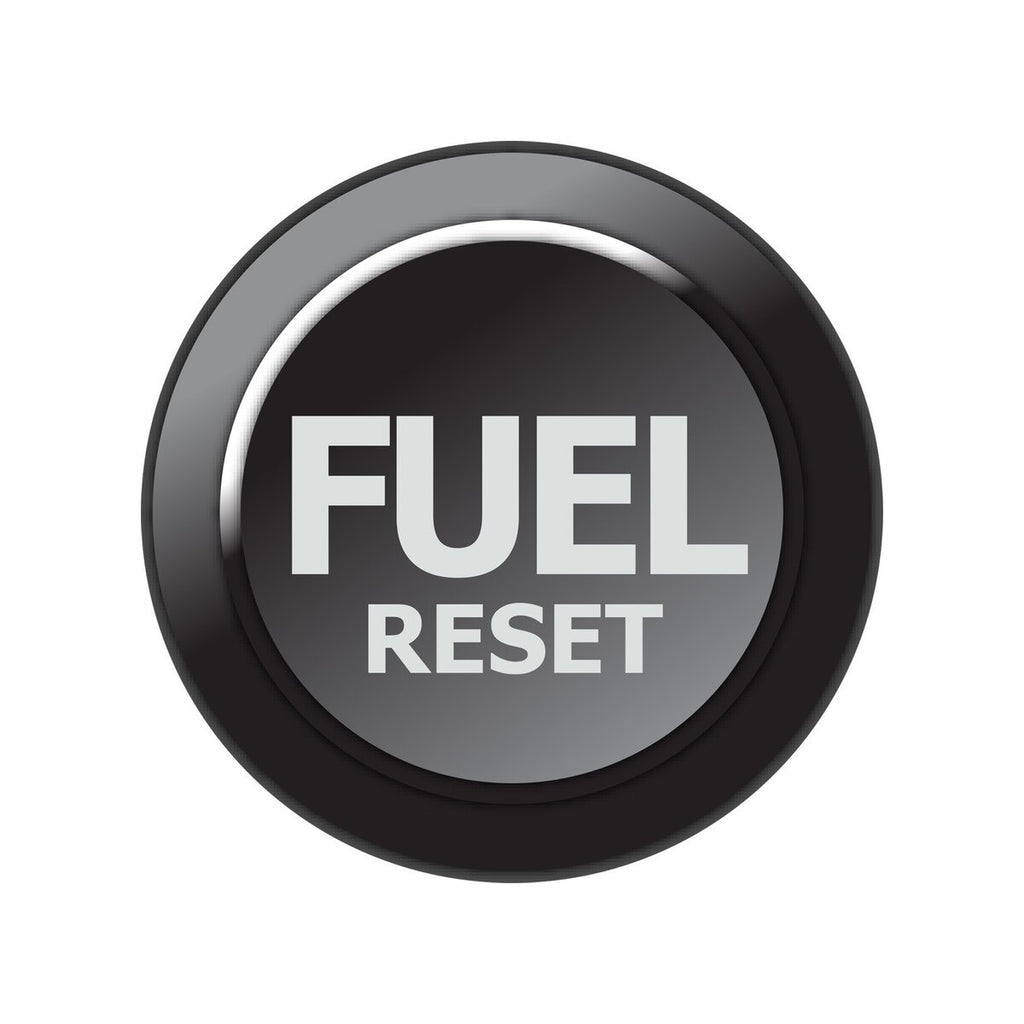

CAN Keypad Insert - Fuel Reset
