Installation is a breeze
Within a few hours your 2JZ is up and running and just waiting to be tuned by the closest tuning mastermind...
Fits most Toyota Supra
Fits 2JZ-GTE, non-VVTi models (MaxxECU also supports the variable valve timing system)
MaxxECU STREET inputs
- Intake air temperature sensor (IAT)
- Coolant temperature sensor (CLT)
- Throttle position sensor (TPS)
- Lambda (WBO) sensor. Uses a sensor directly connected to the ECU without any additional electronics. Supports Bosch LSU 4.2
- 2 trigger inputs. VR or digital. Automatic trigger level detection. The signals are processed by a completely separated processor for maximum performance and immunity against interference
- 2 extra temperature sensors. Can be used as switches or control of additional functions
- 2 extra 0-5V inputs. Can be used for additional sensors such as for measurement of fuel/oil pressure
- 2 digital inputs used for example for speed sensors (Hall) or switches
- Built-in 400kPa MAP-sensor for up to 3bar/43PSI of boost
MaxxECU STREET outputs
- 6 injectors outputs. High impedance only
- 6 ignition outputs. 5V signal to drive ignition modules, CDI units or coils
- 4 outputs for extra features. Can be used to control virtually anything. Fuel pumps, idle control, boost solenoids, nitrous, shift lights, fans, warning lights, etc. GPO 1-3 (2A), GPO 8 (5A)
MaxxECU STREET technical
- CAN bus (additional wires required)
- USB communication for tuning with MTune
- 8MB memory for internal logging, up to 1000Hz
- Supply voltage 8-22V
- ARM Cortex-M3 120MHz main processor
- Resolution on ignition: 0.1 degrees
- Resolution on injectors: 0.001 ms
- Updates the fuel and ignition calculations 2000 times per second
- The fastest PC communication on the market
- Weight: 520g
- 140x134x42mm (including mounting points, excluding connector)
- Aluminium casing

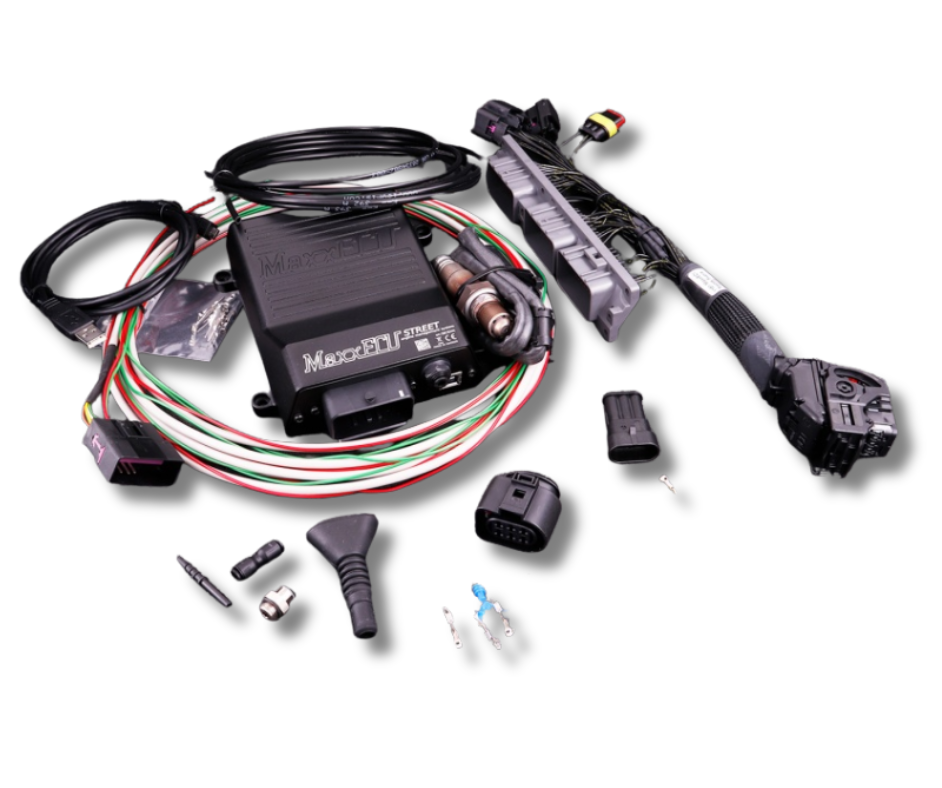

Products included

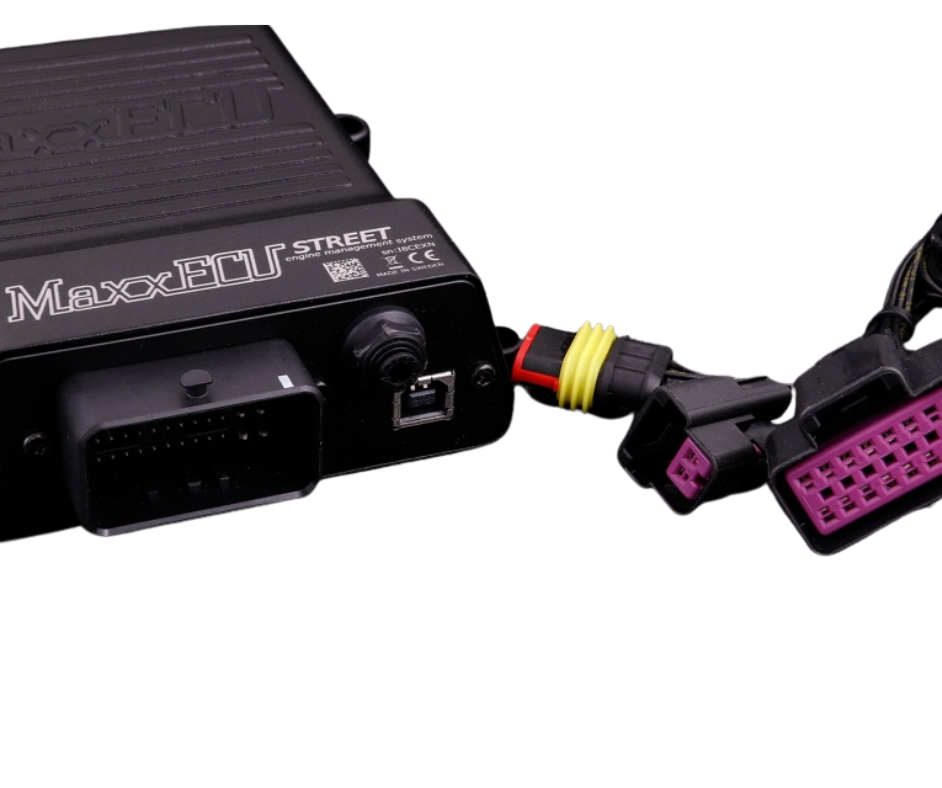

- MaxxECU STREET unit
- MaxxECU Plugin adapter - Toyota Supra MKIV
- Lambda Sensor Bosch wideband lambda LSU 4.2
- MaxxECU Plugin lambda cable (16-pin)
- MaxxECU hose kit (MAP sensor incl nipples)
- MaxxECU USB PC cable 1.5m (STREET/V1/RACE)
- MaxxECU Bluetooth mobile antenna
- MaxxECU sticker
- Connector 6-way socket housing (LSU 4.2 wideband sensor)
- Connector 3-pin housing Superseal
- MaxxECU Quick Guide (English)
Extra Information
⚠️ MaxxECU Dealer Region Restrictions
Please note that, due to MaxxECU dealer region restrictions, we can only supply MaxxECU products to customers located in Ireland and Northern Ireland.
Please note that, due to MaxxECU dealer region restrictions, we can only supply MaxxECU products to customers located in Ireland and Northern Ireland.
