Introducing MaxxECU GEN2 RACE – the ultimate engine control system for tuners and racing professionals.

When every millisecond matters, on the street, track or dragstrip, the GEN2 RACE gives you access to virtually all engine data, allowing you to fine-tune every aspect for peak performance.

It comes with the intuitive MTune software for seamless tuning and real-time monitoring, plus full control with the wireless MDash Android app, taking your setup to the next level.

Features

Target Engines of MaxxECU GEN2 RACE

All 1-12 cylinder engines (2/4-stroke)
Up to 12 cylinders fully sequentially
Up to 12 cylinders in wasted spark

MaxxECU GEN2 RACE inputs

8 pulse inputs (VR/HALL): 2 with selectable 5/12V power supply, all with selectable pullups.
24 Analog inputs (selectable pullups)
8 Exhaust Gas Temperature inputs (TYPE-K)
Dual wideband lambda (LSU 5.2/4.9/4.2)
Dual knock sensor input

MaxxECU GEN2 RACE outputs

16 injectors (Peak-hold high/low impedance) / GP outputs
12 IGN / GP outputs (selectable +5V/12V/GND)
8 GP Outputs (GND)
4 GP Outputs (+12V)
4 GP Outputs (H-bridge/E-Throttle)

MaxxECU GEN2 RACE technical

Superseal 1.0 connectors
550 kPa MAP sensor (4.5 bar / 65 PSI boost), user-serviceable, with BSP 1/8 thread
3-axis accelerometer (up to 8 G)
ARM dual core CPU
6-22V operating voltage
16GB internal log capacity, 1000Hz, all 1600+ channels
USB-C 480mbit/s (MTune PC communication)
USB-C 12mbit/s (tablet charging).**
WIFI communication with MTune and MDash**
Bluetooth connectivity with MDash
Dual CAN bus for expansion modules, OEM vehicle CAN, OBDII, CAN gearbox control
Resolution on ignition: 0.1 degrees
Resolution on injectors: 0.001 ms
Performs fuel and ignition calculations 3,000 times per second.
200Hz sampling rate on all EGT inputs
2000Hz sampling rate on analog/digital inputs
Weight: 700g
240x138x35mm including protruding connectors
Black powder-coated aluminium case
All inputs and outputs are safeguarded against overvoltage, reverse polarity, and short circuits.

**WIFI and USB Port2 not yet supported for communication

Premium 5.2 Lambda (ECU, harness, accessories and 2 x LSU)

GEN2 RACE Unit
Flying Lead Wiring Harnesses x 4
USB PC USB-C to USB-A
USB PC USB-C to USB-C
USB rubber USB-C cover
Stickers
MAP sensor BSP 1/8 to AN3 nipple
MAP sensor BSP 1/8 to hose nipple
Wiring Diagram
Quick Guide (English)
Antenna (bluetooth / WIFI)
Lambda Sensor Bosch wideband lambda LSU 5.2 x 2
Connector 6-way socket housing (LSU 5.2 wideband sensor) x 2

Please note that, due to MaxxECU dealer region restrictions, we can only supply MaxxECU products to customers located in Ireland and Northern Ireland.

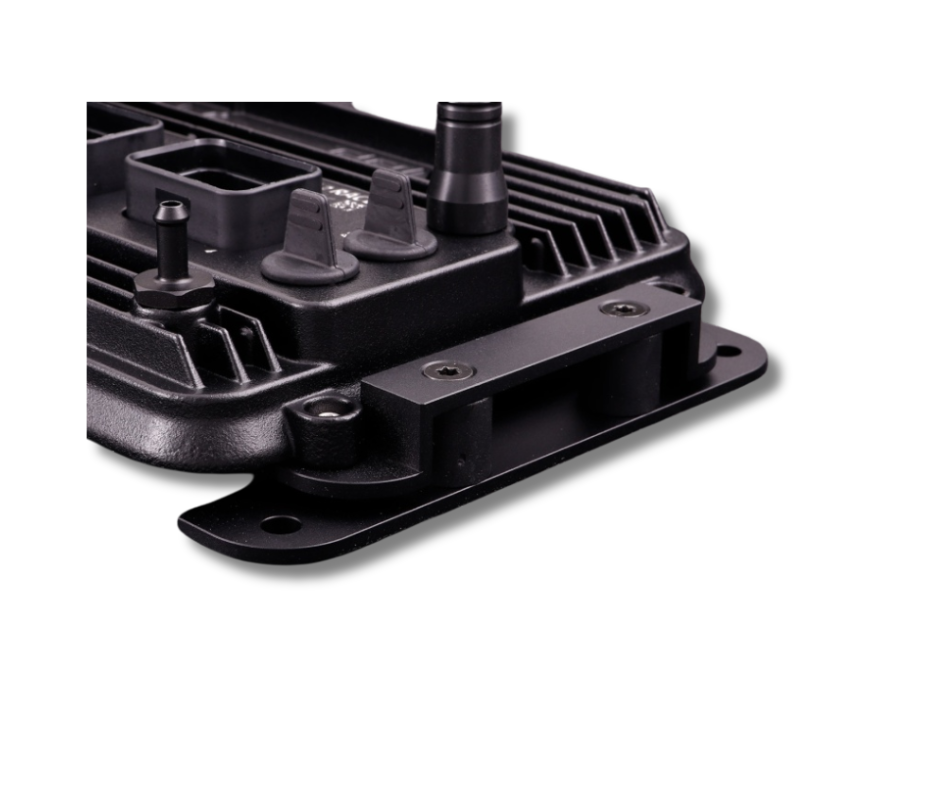

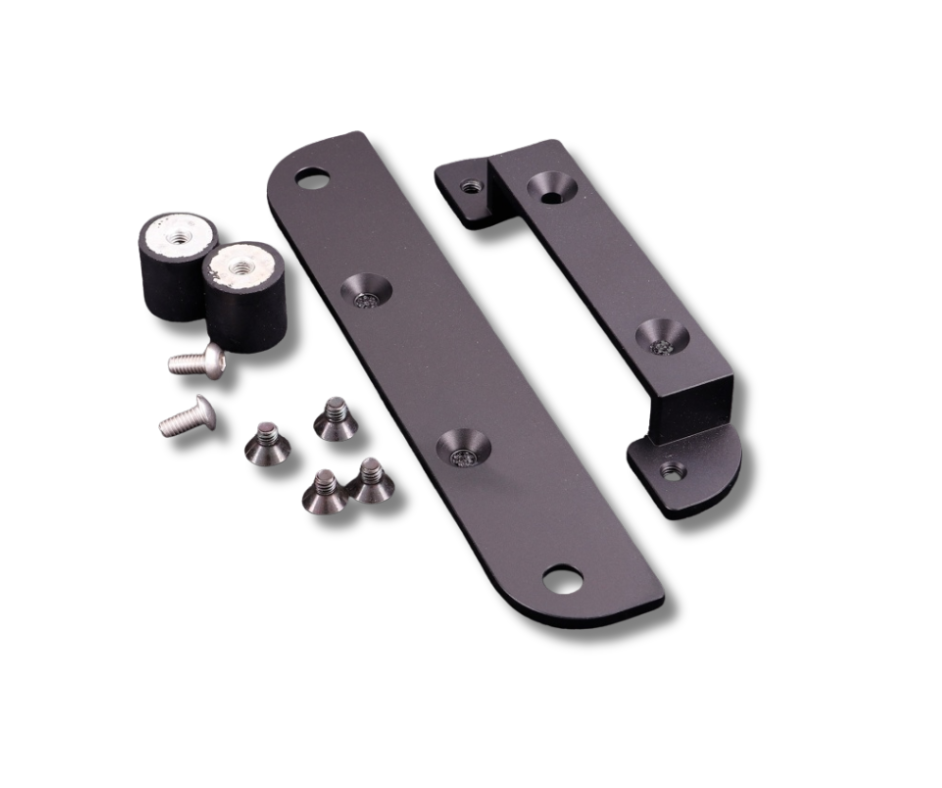

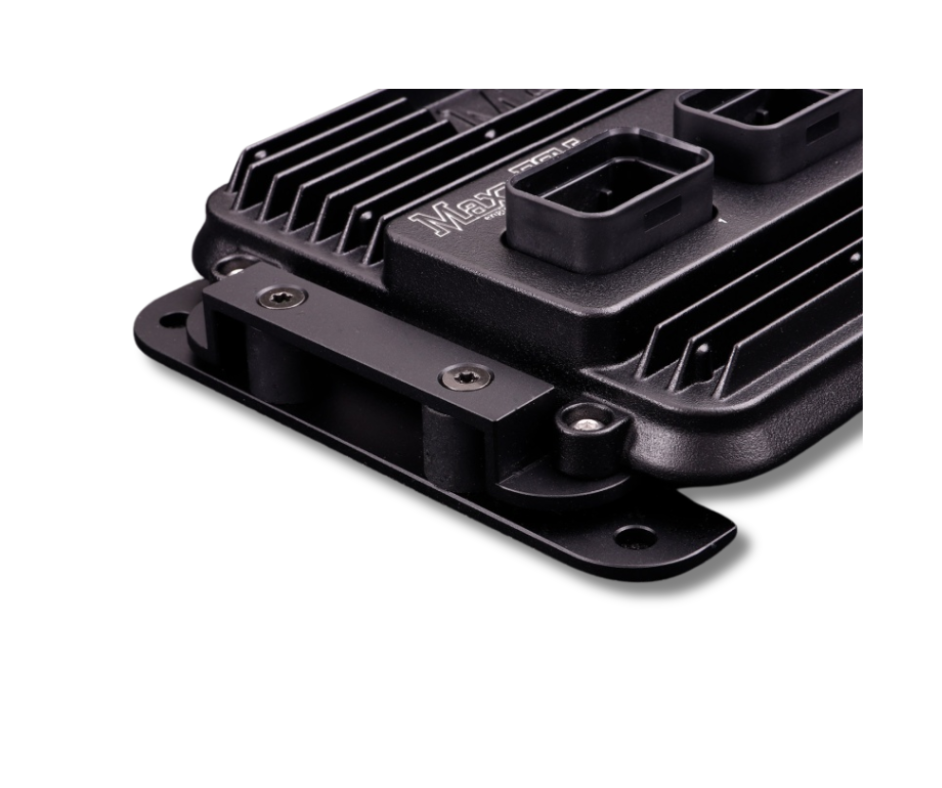

MaxxECU RACE (GEN2) Bracket Kit

Products Included:
