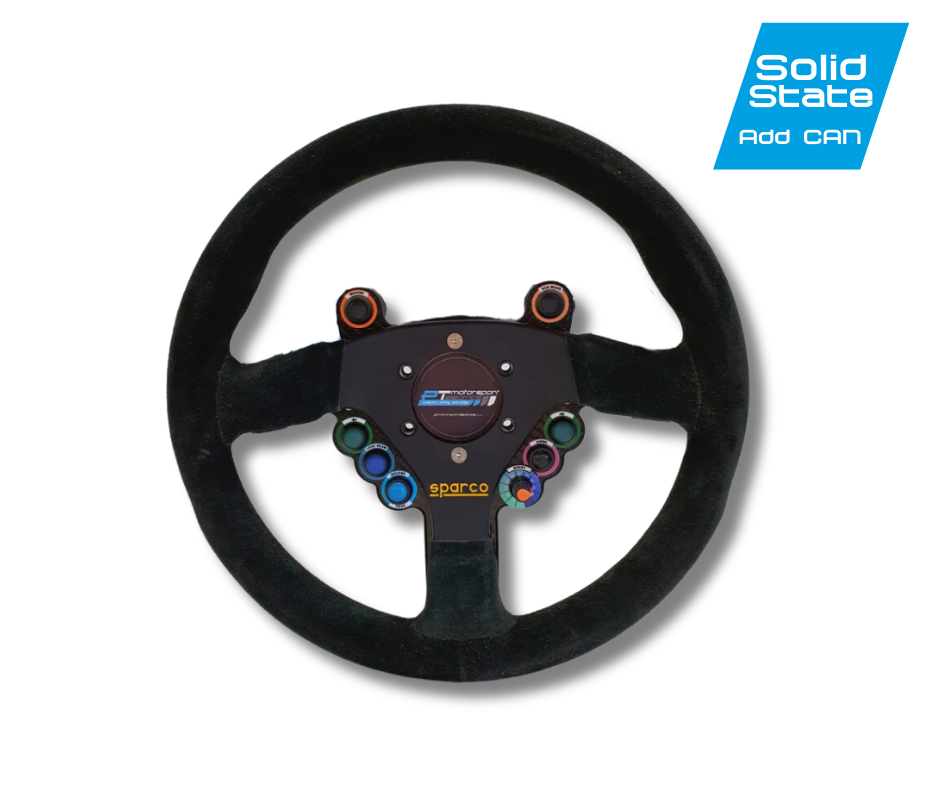

Wireless Steering Wheel Kit - SS

We build our wireless steering wheel kits with the help of a number of different companies. The end result is a super modern and easy to use system to have all vital driver controls at the drivers fingertips.

Features

• Custom built carbon steering wheel plates to most wheel types
• Professionally 3D Printed Rear Enclosure
• Numerous Switch Layout configurations available
• Wheel mounted paddles for paddleshift available
• Rotary switches for Launch/Traction/Boost etc available
• Optional CAN Interface

Kit Includes

• Carbon Wheel Plate and Rear Enclosure with transmitter built to customers specification.
• Wireless Receiver
• Connector Housing and Terminals to suit Wireless Receiver
• USB Configuration Cable
• Free Configuration Software
• Optional 120Ohm CAN Termination Resistor
• Optional CAN Preset

Wireless Module Type

8 Channel Solid State Kit:

• Full solid-state low-side switching of up to six, 600mA loads, such as standard automotive relays, with built-in short circuit and overcurrent protection and endless re-configuration possibilities, using the included free programming software.

• Two analogue channels for wireless potentiometer control such as Launch, Traction, Boost Control and many more
• Optional CAN Interface output for seamless PDM/ECU or Dash Display integration. We can supply the kit with many different CAN Presets to suit Ecumaster, Link ECU, MaxxECU, Haltech and more.

• Includes a rainlight function, perfect for racing with dual solid light and 4Hz flashing hazard modes, and Flash-to-Pass to give a 2-second 4Hz headlight flash.

• Choose any combination of smart headlight, smart indicator, IVA fog light and rainlight modes or momentary and latching behaviour for each solid state channel.
• The Receiver measures 86 x 55 x 35mm and weighs 285g.
• At a tiny 54 x 38 x 23mm, the Transmitter weighs just 61g including the battery!

All kits are made to order with a minimum 4 - 6 week lead time. Please contact us prior to purchasing with any custom requirement you may have.
