Nuke Performance

Audi 5cyl 20V AAN fuel rail

  • Sale
  • Regular price $217.00

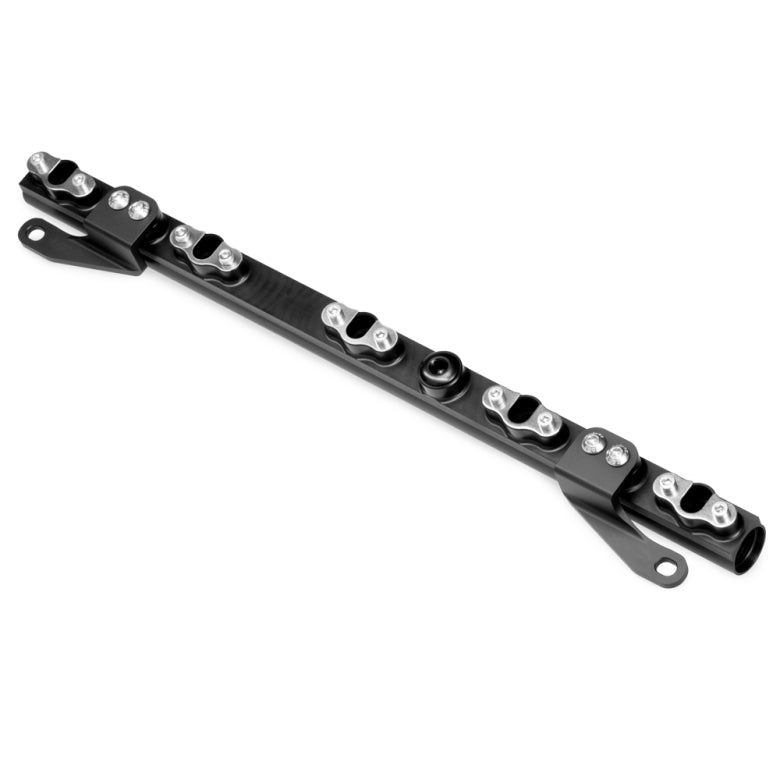

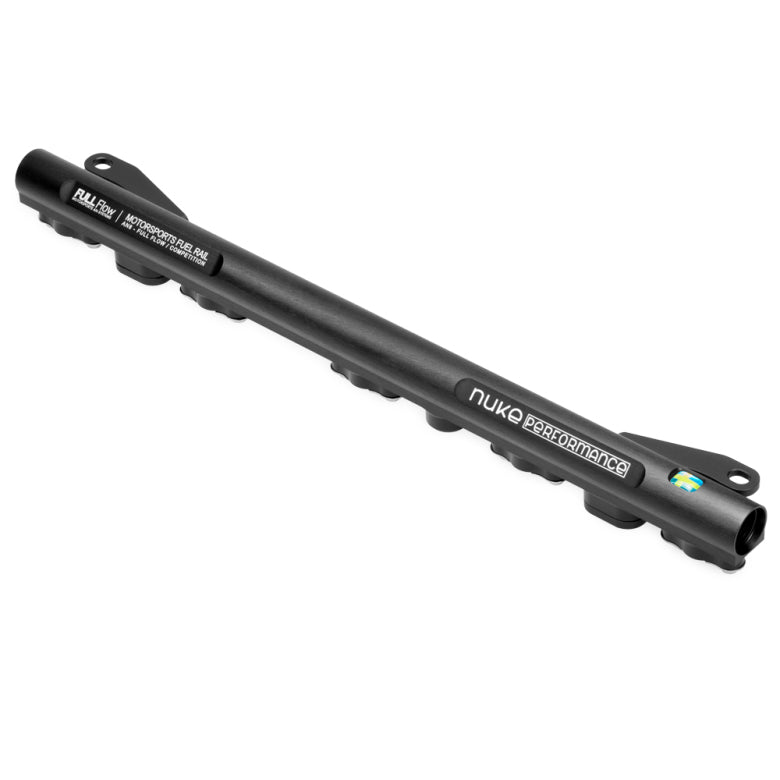

Nuke Performance fuel rail for the Audi 5cyl 20V S4 and S6 engine with AAN intake, oversized internals, lightweight design, and equipped with our unique injector safety clips.

The Audi 5cyl AAN fuel rail is delivered with brackets for the AAN intake and allows you to go with AN fuel lines and aftermarket injectors for your classic Audi engine.

  •  Lightweight fuel rail that fits Audi 5cyl 20V AAN engines
  • To be used with Bosch EV14L type injectors
  • AN-8 ORB threads in both ends enable a high fuel flow
  • Delivered with brackets for easy mount to the Audi AAN intake
  • AN-6 ORB side outlet/inlet for optional applications
  • Safe for all types of fuels, including alcoholic fuels such as E85

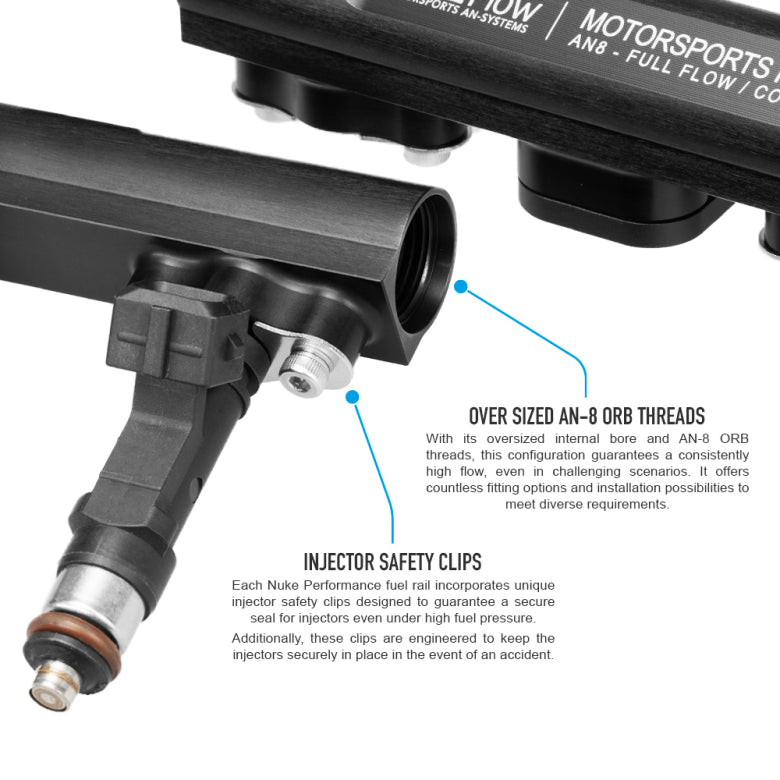

The Nuke Performance's newest generation of fuel rails grants an easy fit to your engine with an extremely lightweight design. It uses the unique injector safety clips that fuel rails from Nuke Performance have become famous for, which grants a leakproof seal even during a crash where the fuel rail would get torn out of the intake manifold.

Perfect fitment for an Audi 5cyl AAN engine from S4 and S6 C4, delivered with the needed hardware to mount to the intake.

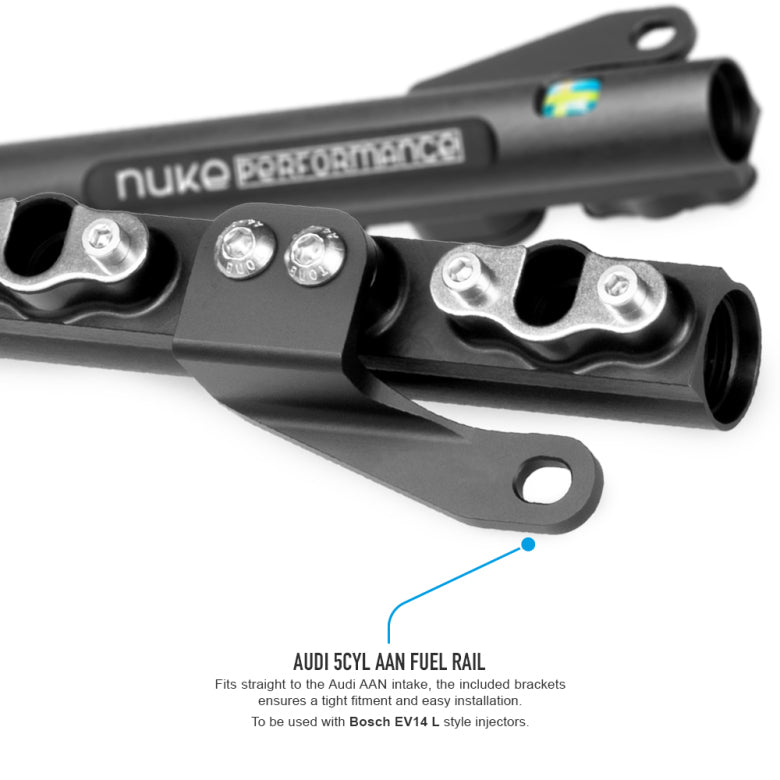

The Nuke Performance Audi 5cyl AAN fuel rail is delivered with brackets for the 5cyl AAN intake.
Audi S4 (C4) AAN 1991-1994
Audi S6 (C4) AAN 1995-1997
Please be aware that this fuel rail is incompatible with the ABY and 3B engines.

Nuke Performance Audi 5cyl AAN fuel rail Specifications:

Delivered with brackets for    5cyl 20V S4 (C4) AAN 1991-1994
5cyl 20V S6 (C4) AAN 1995-1997
Injector type specification  Bosch EV14 L style
End inlet/outlet threads     AN-8 ORB (view assortment) *
Additional port thread       AN-6 ORB (view assortment) *
Length    397.00mm (15.63")
Height    32.00mm (1.25")
Weight    344.00g (12.13oz)
Fuel compatibility    Petrol, Gasoline, Ethanol, E85, E100, Methanol
For motorsports use   YES
* not included, make sure to select the needed fittings when placing an order
** old generation that did not include brackets for the AAN engine

Nuke Performance Audi 5cyl AAN fuel rail includes:
1 x AN-8 ORB Full Flow fuel rail profile for Audi 5cyl AAN
2 x Aluminum brackets for Audi 5cyl AAN
1 x AN-6 ORB Plug
5 x Nuke Performance Injector safety clips
10 x MC6S M4x6mm stainless steel bolts
4 x K6S M6x10mm stainless steel bolts
2 x K6S M6x12mm stainless steel bolts

Side outlet fittings purchased separately.
