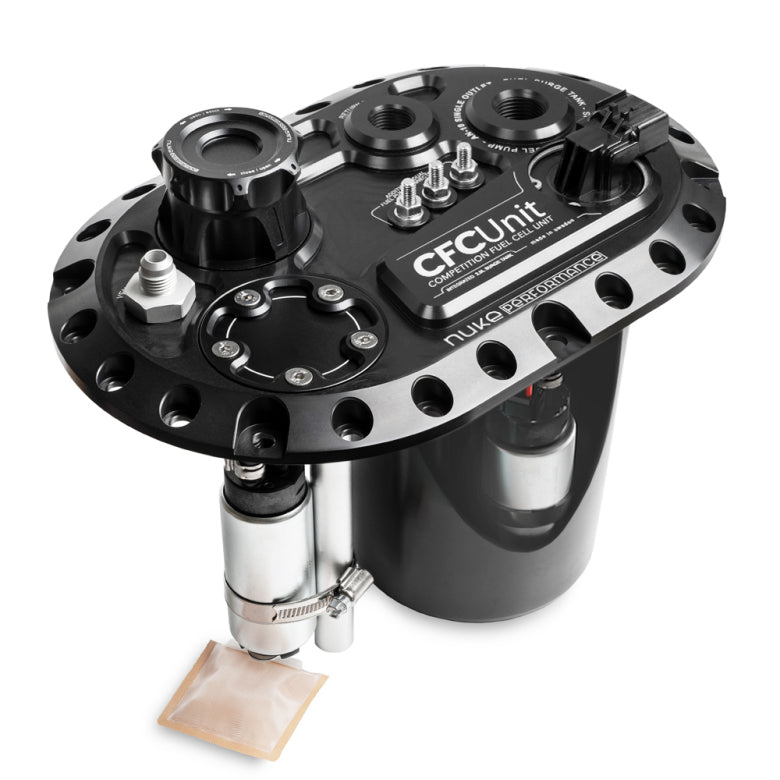

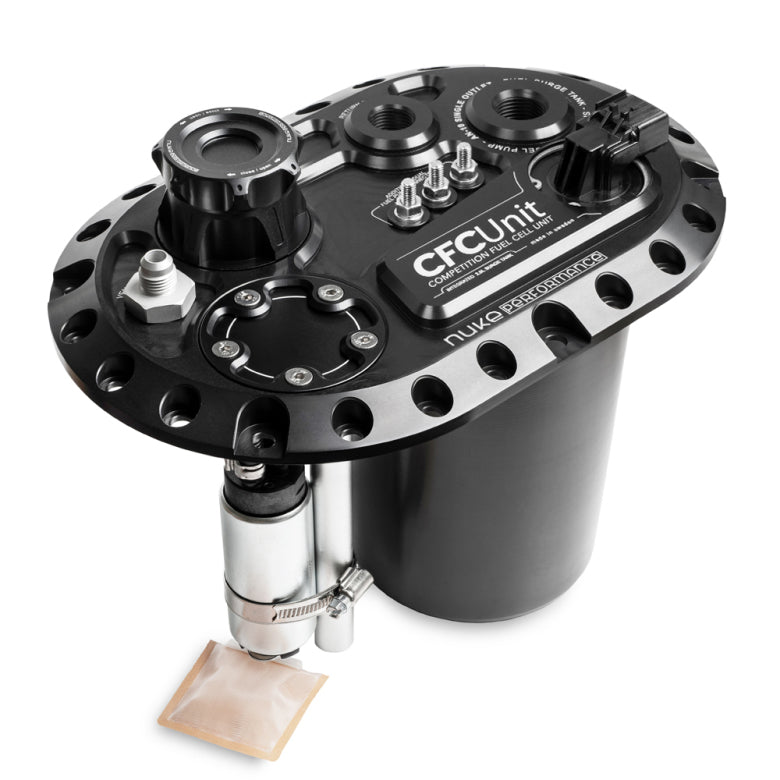

CFC Unit for brushless fuel pumps - Competition Fuel Cell Unit, with integrated fuel surge tank

The Nuke Performance CFC Unit, specially developed for use with brushless fuel pumps, such as Protec Cobra Compact and Deatschwerks DW440 Brushless. With integrated fuel surge tank and fuel pump hanger.
The Nuke Performance CFC Unit, specially developed for use with brushless fuel pumps, such as Protec Cobra Compact and Deatschwerks DW440 Brushless. With integrated fuel surge tank and fuel pump hanger.

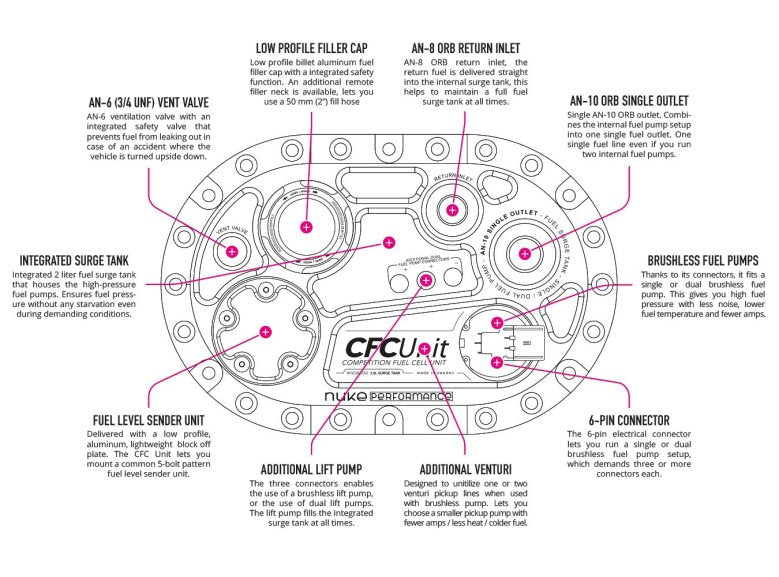

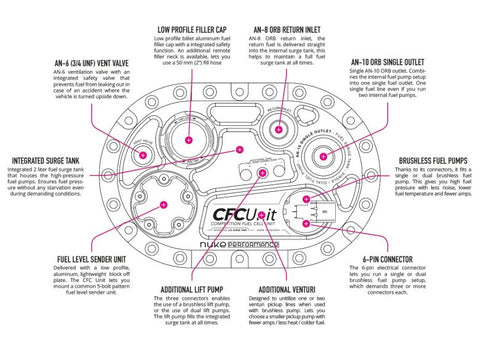

•  Fits your standard aftermarket Fuel Cell
•  For brushless fuel pumps with additional venturi pickup
•  Low weight "drop-in surge tank" for your fuel cell
•  Integrated 2.0 liter Fuel Surge Tank functionality
•  Single AN-10 ORB outlet, for a trouble-free installation
•  100% proof for all types of fuel, including ethanol

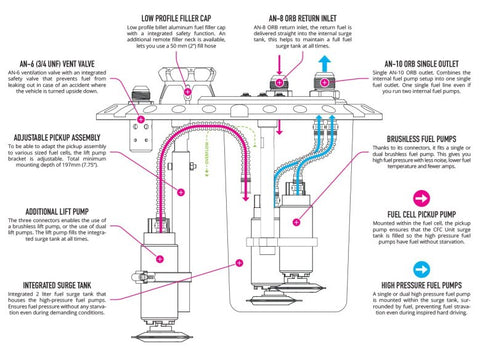

The Nuke Performance CFC Unit eliminates the need for an external surge tank which is also needed when running a fuel cell, making it is a perfect solution for fuel-injected systems. Used with PWM control in combination with the CFC Unit prevents emerging heat when running numerous fuel pumps. This is the best way to eliminate the fuel starvation that may otherwise occur in motorsports. And with the new design that accommodates brushless fuel pump installation, it´s also possible to mount venturi pickup points that ensure a full surge tank even at extremely low fuel levels.

•  Fits 1 or 2 Protec Brushless Cobra Compact in-tank fuel pumps
•  Fits 1 or 2 Deatschwerks DW440 / DW810 Brushless fuel pumps
•  Designed to use a single or dual additional venturi pickup line
•  Safe for all types of fuel, including alcoholic fuels such as E85

Nuke Performance CFC Unit for brushless fuel pumps specifications
For more information about CFC Unit specifications, view the product manual.

High-profile CFC Unit for brushless fuel pumps includes:
1 x Nuke Performance CFC Unit - high profile version for brushless fuel pumps
1 x Delphi 6-pin bulkhead connector with Viton O-ring seal
2 x Female electrical connectors with 6 connection pins each
2 x 1/4" BSPP to Male barb 8mm hose fittings
1 x 1/4" BSPP plug, when using only one high-pressure fuel pump
2 x 39mm inserts for high-pressure fuel pump bracket
2 x 42mm inserts for high-pressure fuel pump bracket
1 x Viton gasket for 24 bolt pattern fuel cells (safe for alcoholic fuels)
1 x Low profile filler cap (remote fill neck available as accessory)
1 x Dual billet fuel pump bracket and adjustable pickup pump mount
1 x AN-8 (3/4 UNF) to AN-6 Male vent safety valve
1 x FLS spacer, used for fuel level senders with a not symmetrical bolt pattern
24 x 1/4-28 UNF x 1 bolts with nylon washers

 Download User Manual (.pdf)
