DTAfast

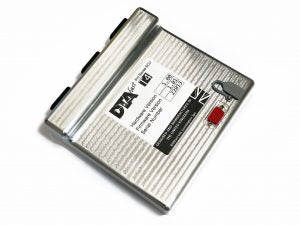

DTAfast T4+

  • Sale
  • Regular price $1,643.00


PLEASE NOTE: KNOCK CONTROL AVAILABLE FROM 2022 VIA FREE FIRMWARE UPDATE

The T4+ is the ideal choice for running a 4-cylinder engine fully sequentially with single variable cam control, single fly-by-wire throttle and single knock control. It can also run 6 or 8 cylinder engines semi-sequentially.

T-Series engine control units are powered by an all-new, automotive specific, multi-core processor. They feature Bosch lambda controllers for maximum accuracy, multiple safety redundancies, high resolution map tables, fully configurable I/O and up to 32Mb of up to 1Khz logging with compression algorithms for fast log downloads. The PC software has a user-friendly, responsive design for better readability on high resolution monitors using high scaling (DPI). It features a full oscilloscope for crankshaft/camshaft signal analysis and allows firmware to be upgraded without special cables or separate software.

Product features

Inputs
Analogue (0-5v) 8
Digital 3
Thermistor (NTC) 3
Wheel Speed 2
Wideband Lambda 1
Knock 1
Outputs
Digital (PWM) 8
Coil Drivers 4
Injector Drivers 4
Cam Solenoid Drivers 1
H-Bridge (FBW) Drivers 1
Control Strategies
Auxiliary PWM Control
Pit Limiter
Launch Control
Flat-shift Control
VTEC Control
Boost Control
Idle Control
Wideband Lambda single
Variable Cam Control single
Traction Control
Wet/Dry Traction
Fly-by-wire Control single
Knock Control single
Paddle-shift Control
