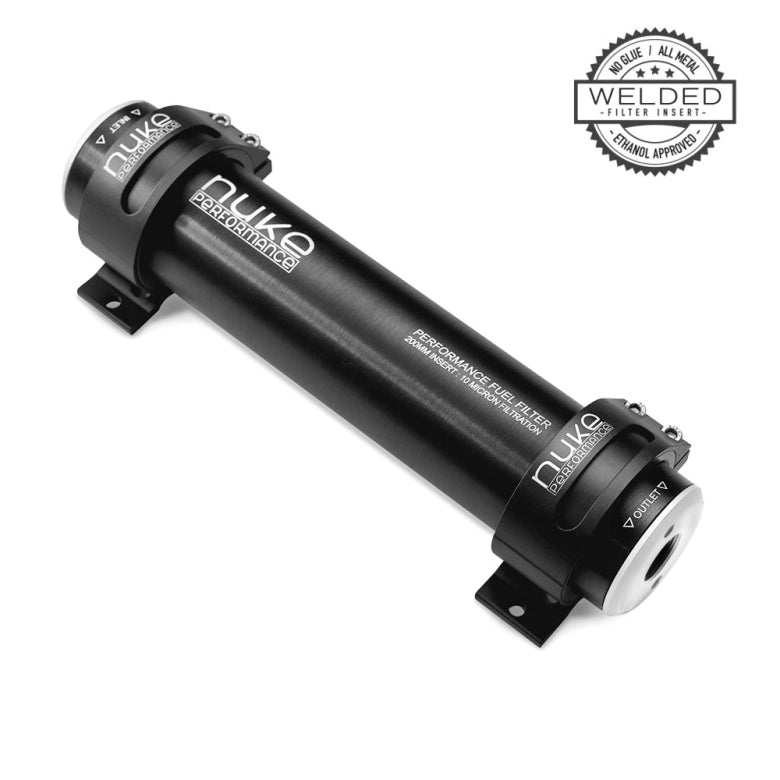

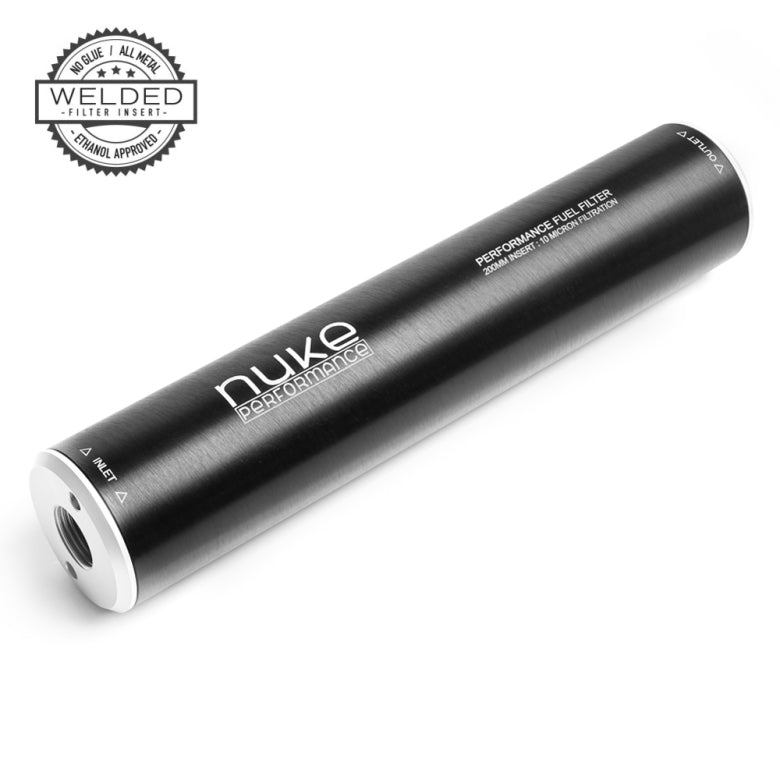

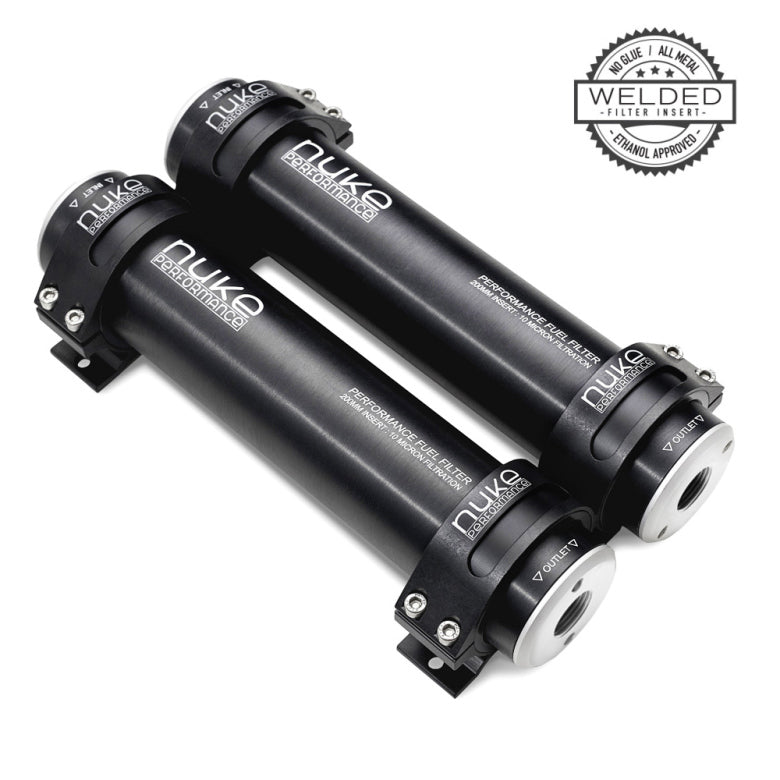

Nuke Performance high flow motorsports PF200 fuel filter: Maximum filtration, minimal flow loss, and 100% proof for alcoholic fuels.
This lightweight high-flow in-line fuel filter is equipped with the unique Nuke Performance welded fuel filter insert that is 100% proof for alcoholic fuels such as ethanol.
- Lightweight slim-design motorsports in-line fuel filter
- Safe for all type of fuels, including ethanol and methanol

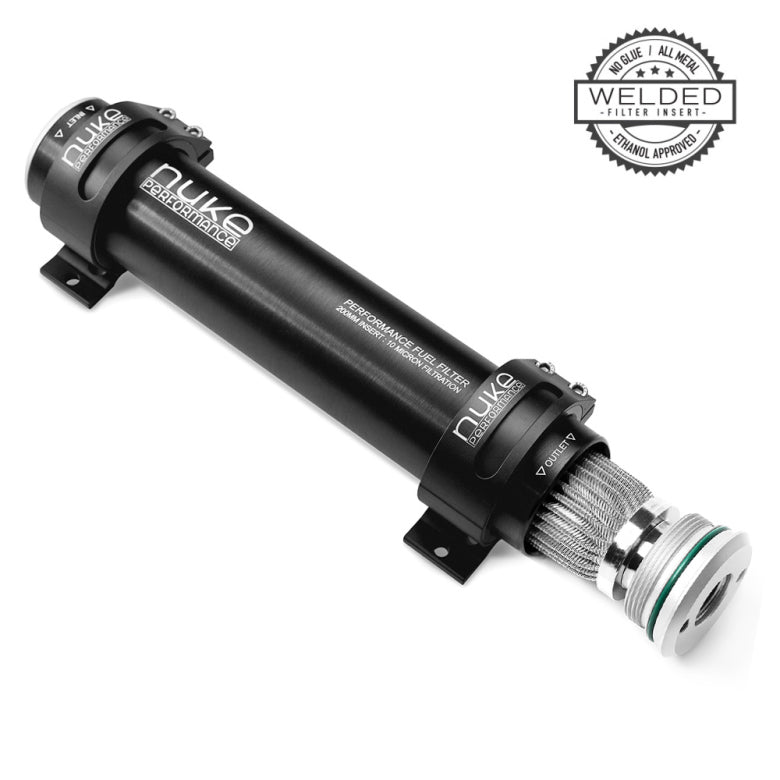

- Welded stainless steel 10-micron filter insert
- Now with AN-10 ORB, for the highest possible flow
- 200mm oversized filter element
- 150 sq. inches of filtering area
- 1800 LPH, extremely high flow with close to no flow loss

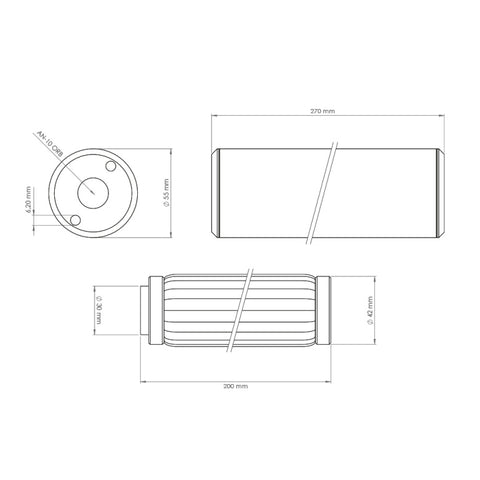

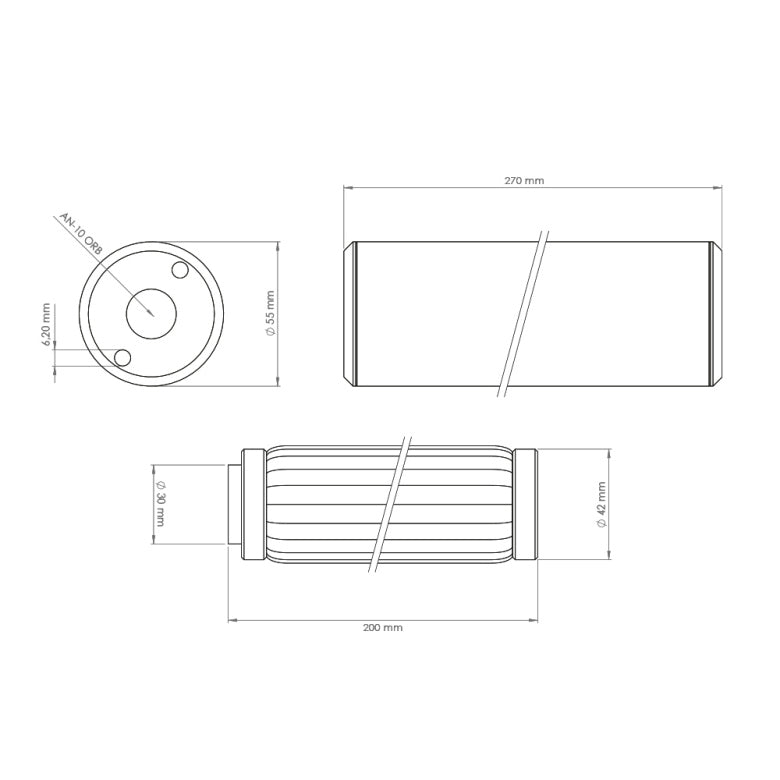

Nuke Performance Fuel Filter PF200 10 micron AN-10 Specifications
For more information about specifications, contact us directly.
| PF200 Fuel Filter Part # | 200-03-201 |
| Replacement filter element Part # | 200-10-104 |
| Filter element micron | μm 10-micron |
| Fuel compatibility | Gasoline, Methanol, Ethanol, Diesel |
| Length | 270mm (10.63") |
| Diameter | Ø 55mm (2.16”) |
| Inlet thread | AN-10 ORB |
| Outlet thread | AN-10 ORB |
| Weight | 1099g (2.42lb) |
| Filter area | 150 sq. in |
| Work pressure / Max pressure | 8 BAR (116 PSI) / 21 BAR (305 PSI) |
| Flow capacity | 1800 LPH |
| Pressure drop | ≈0.15 BAR (≈2.17 PSI) |

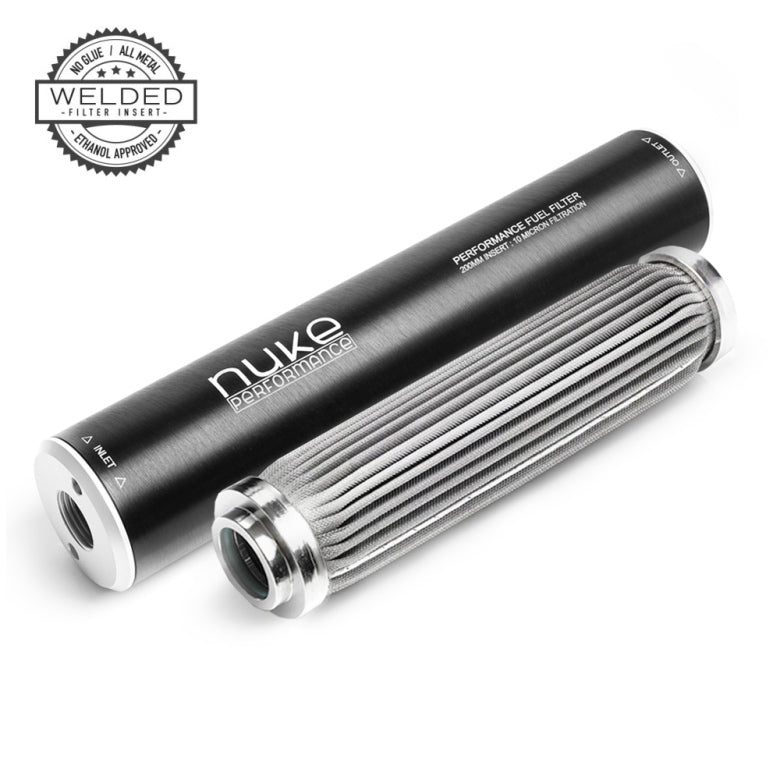

Nuke Performance Fuel Filter PF200 10 micron AN-10 Includes:
1 x Fuel Filter housing with AN-10 ORB threads
1 x 10-micron stainless steel filter element
Download Product Sheet (.pdf)
