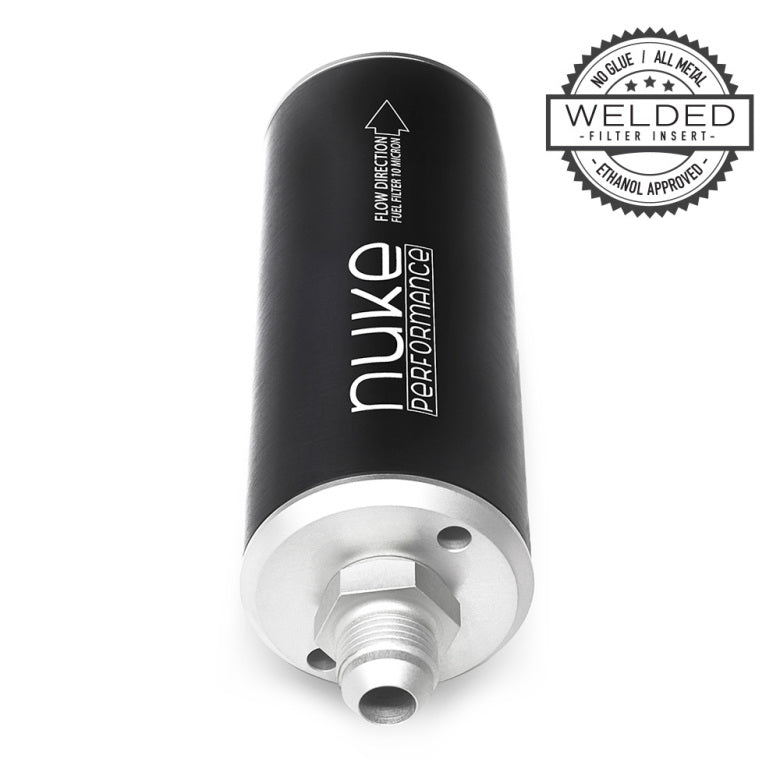

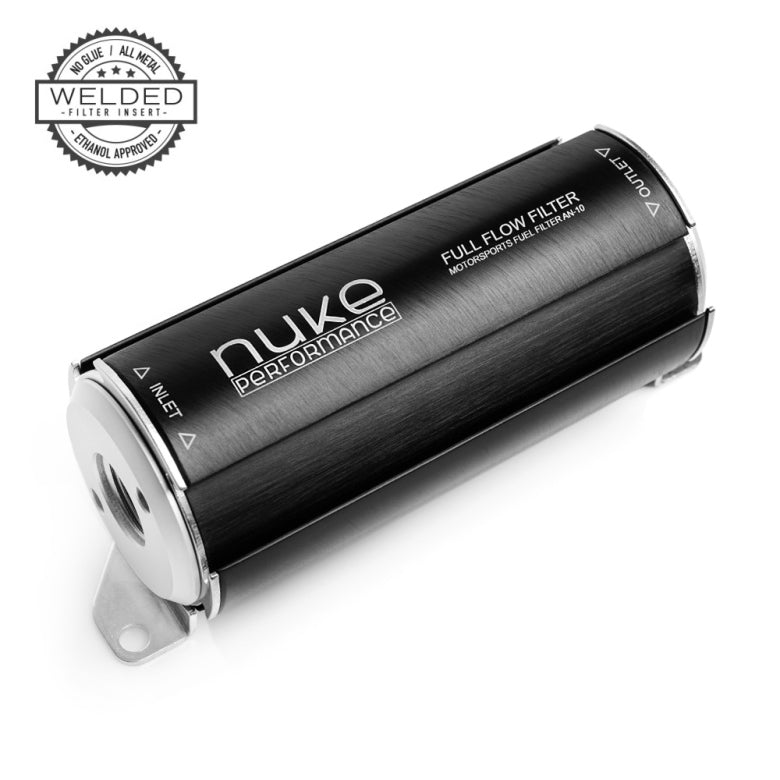

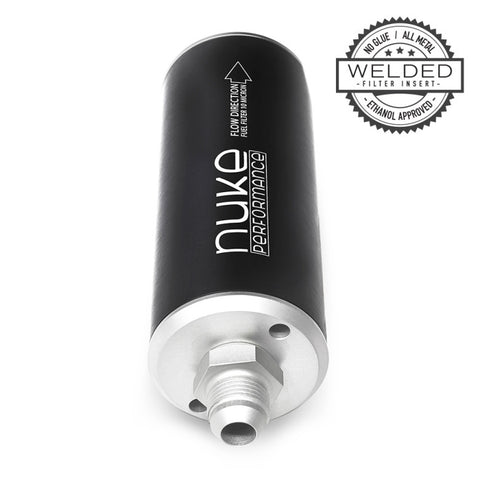

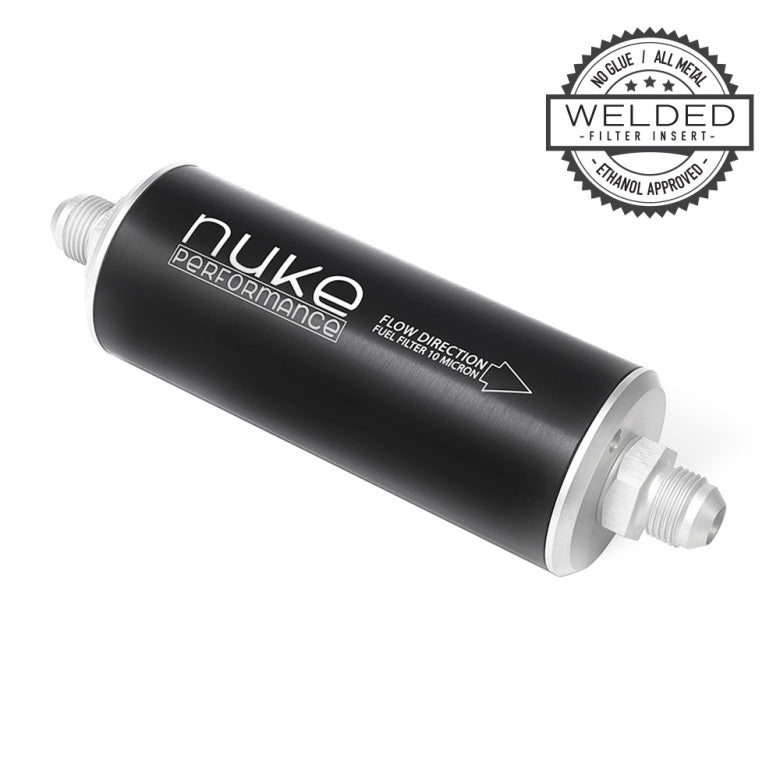

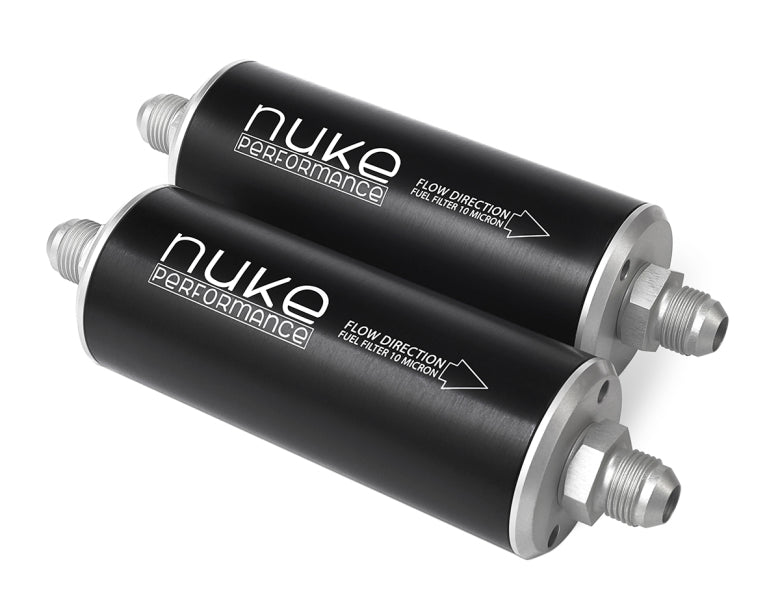

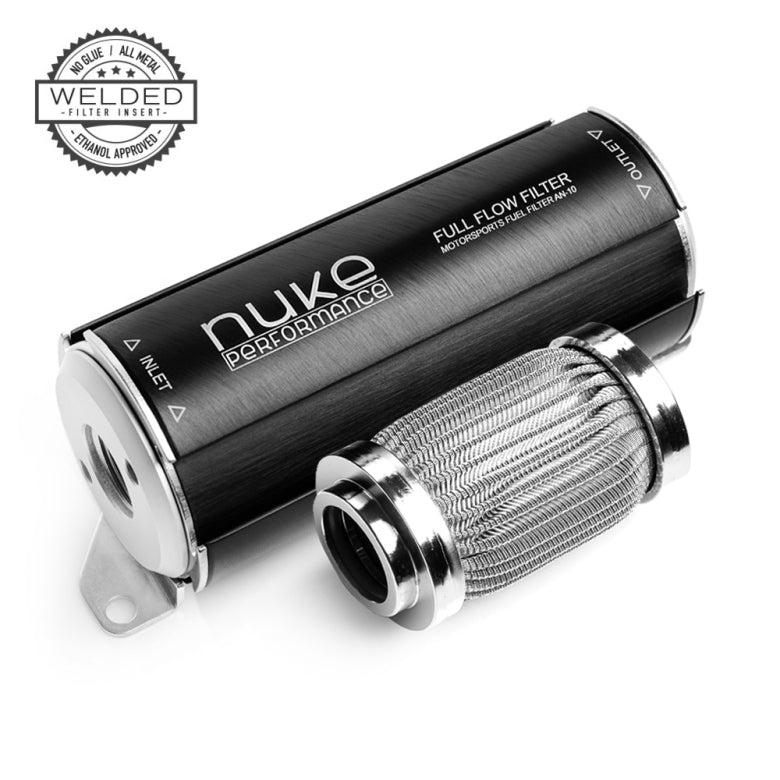

Nuke Performance high flow inline fuel filters with integrated stainless steel brackets, available in 10 and 100-micron filter elements in both cellulose and stainless steel.
This lightweight, easy to install fuel filter is equipped with either a classic cellulose filter element for petrol or with the unique Nuke Performance welded fuel filter insert that is 100% proof for alcoholic fuels such as ethanol.
- Unique design with integrated stainless steel brackets
- Safe for all types of fuels, including ethanol and methanol
- Available with welded stainless steel filter elements
- Now with AN-10 ORB, for the highest possible flow
- Over 60 sq. inches of filtering area
- 750 LPH, high flow with close to no flow loss

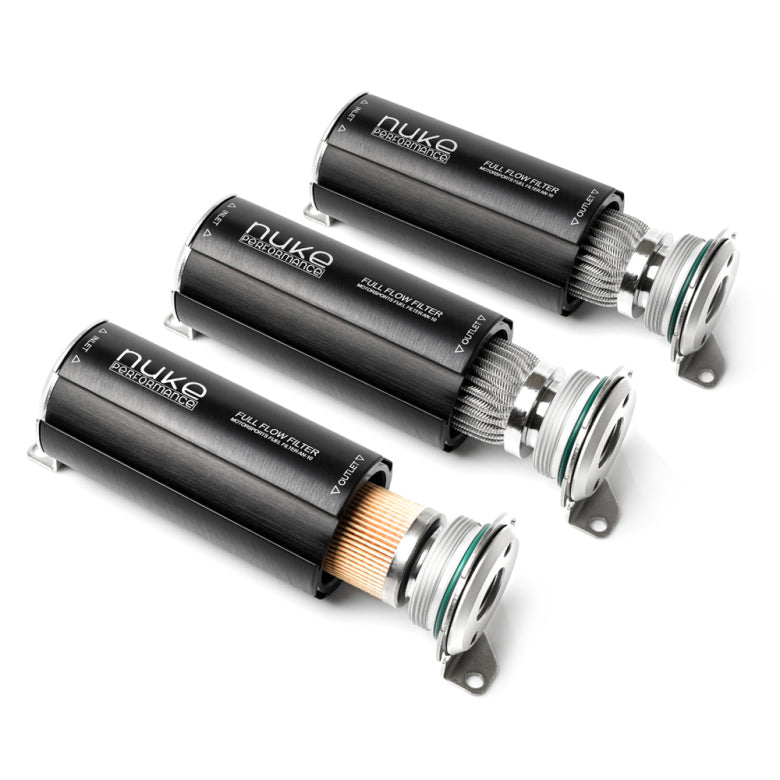

- Available with both 10 and 100-micron inserts
Nuke Performance Fuel Filter Slim 10 / 100 micron AN-10 Specifications
For more information about specifications, contact us directly.
| 10-micron cellulose Part # | 200-02-201 |
| 10-micron stainless steel Part # | 200-02-203 |
| 100-micron stainless steel Part # | 200-02-202 |
| Fuel compatibility | Gasoline, Methanol, Ethanol, Diesel* |

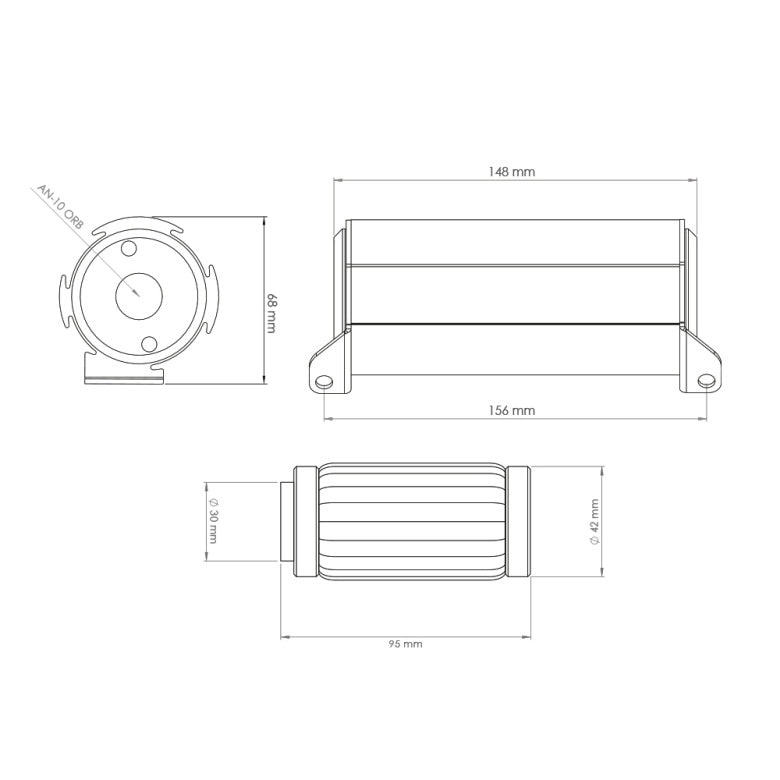

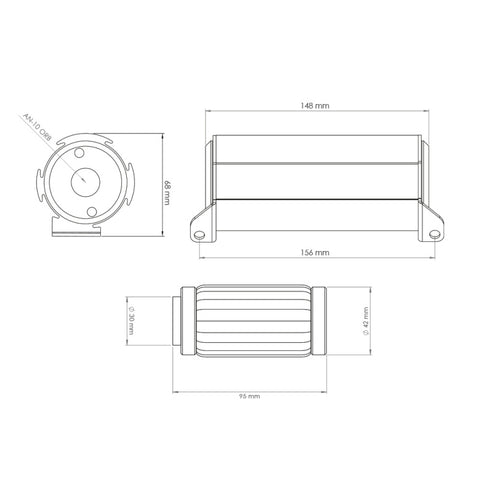

| Length | 148mm (5.82") |
| Height | 68mm (2.67”) |
| Width | 65mm (2.56") |
| Hole pattern | M6 - CC 156mm (6.14") |
| Inlet thread | AN-10 ORB |
| Outlet thread | AN-10 ORB |
| Weight | 720g - 990g (1.5-2.2lb)* |
| Filter area | 60 sq. in |
| Work pressure / Max pressure | 8 BAR (116 PSI) / 21 BAR (305 PSI) |
| Flow capacity | 750 LPH |
| Pressure drop | ≈0.15 BAR (≈2.17 PSI) |
* depending on fuel filter version
Nuke Performance Fuel Filter 10 / 100 micron AN-10 Includes:
1 x Fuel Filter housing with AN-10 ORB threads
1 x Fuel Filter insert of choice
Product update 2021 :
To satisfy our customers' wishes, our fuel filters are now delivered with AN-10 ORB threads. Larger range of fittings (view AN-10 ORB range) and even higher flow.
Download Product Sheet (.pdf)
