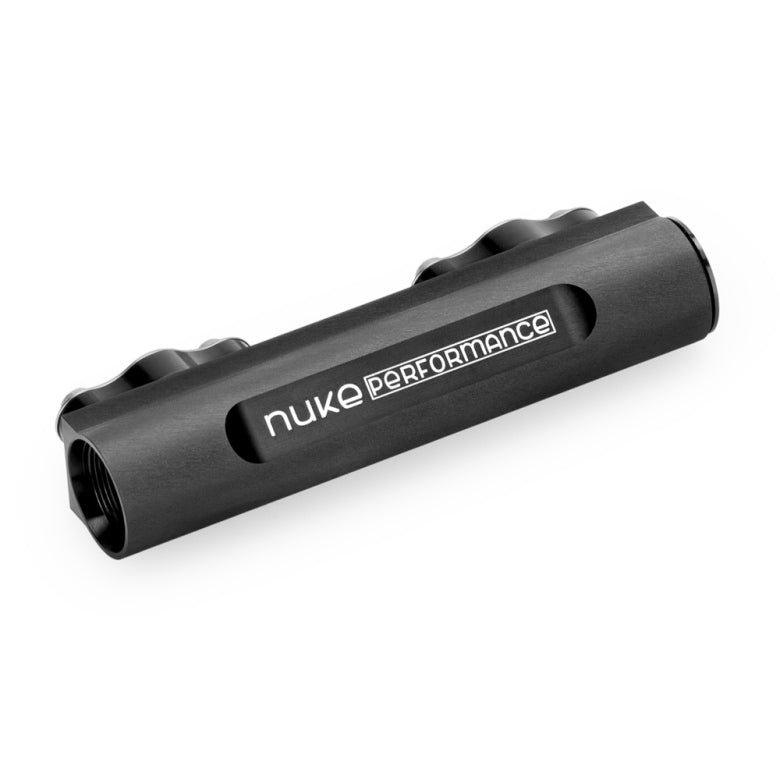

Fuel Log 4-port collector, AN-8 ORB

Nuke Performance second-generation Fuel Log 4-port collector, AN-8 ORB. Space-efficient manifold that allows flexibility when routing a fuel system with in-line fuel pumps or filters.

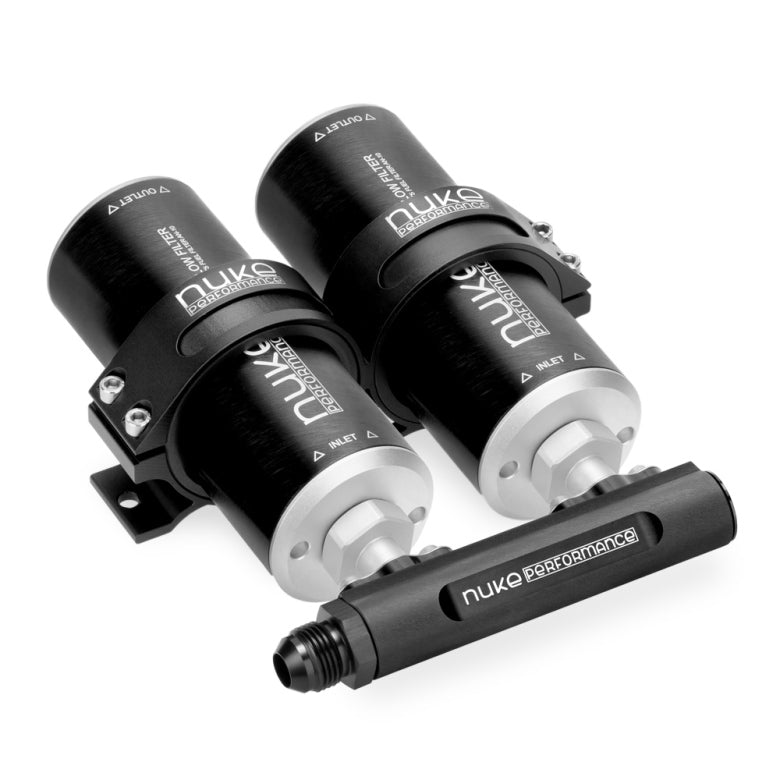

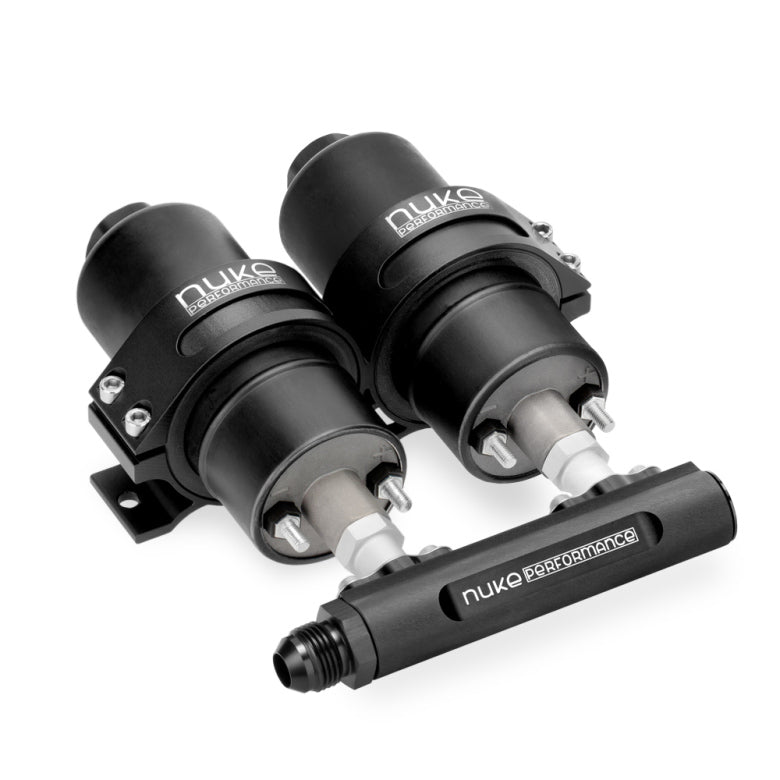

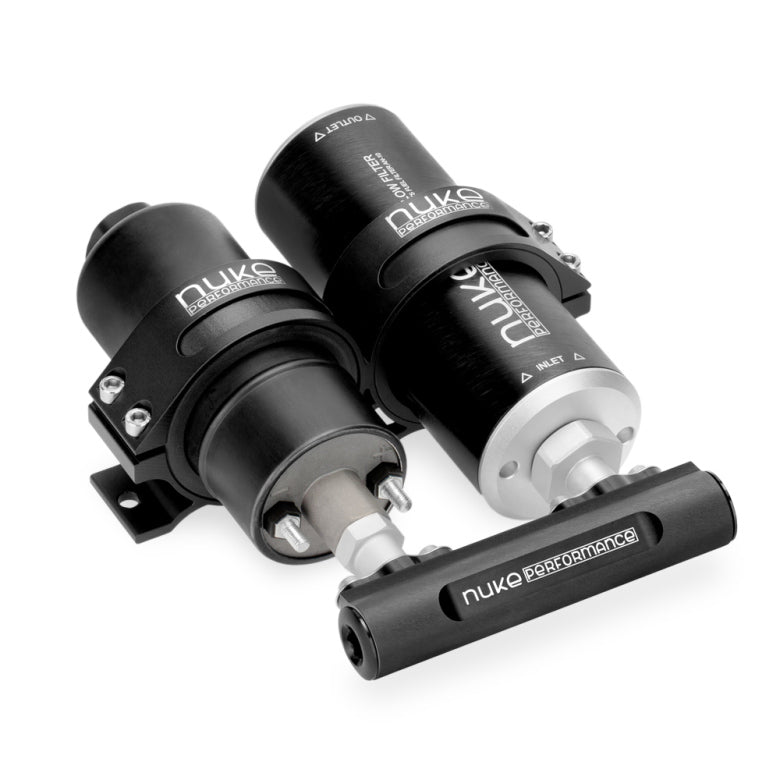

The fuel log from Nuke Performance makes it easy to combine two in-line fuel pumps into one single AN-8 ORB outlet. You can also choose a single fuel pump that routes back into an in-line fuel filter, making this a space-efficient and safe setup.

•  AN-8 ORB outlets on each end of the fuel log

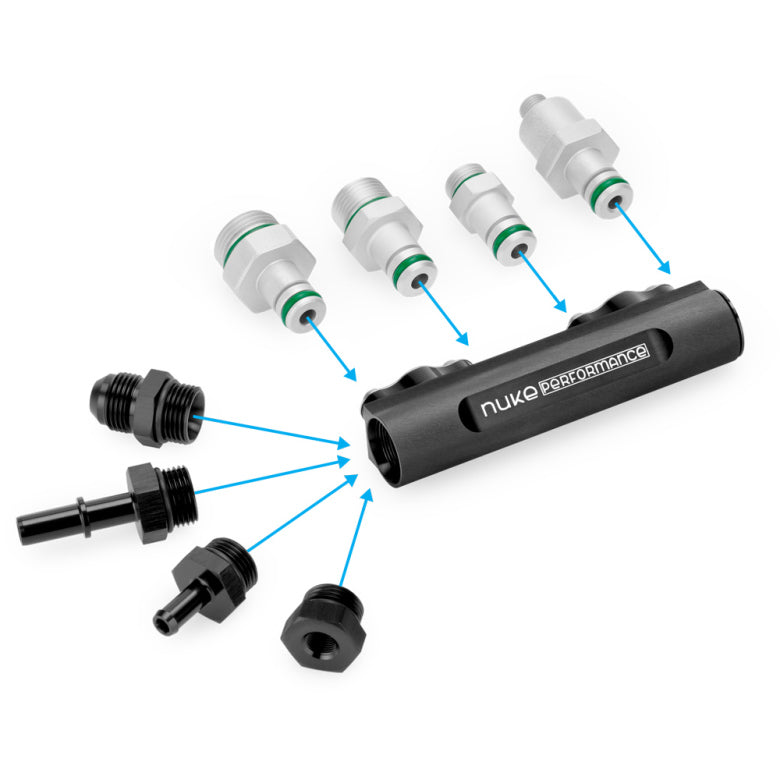

•  Choose between various-sized inlet adapters
•  Lightweight and space-efficient design
•  Safe for all types of fuels, including E85
•  Delivered with 1x AN-8 ORB Plug

The updated new generation fuel log 4-port collector, AN-8 ORB from Nuke Performance is delivered with 1x AN-8 ORB Plug for one of the outlet ports, the open AN-8 ORB port offers a wide range of outlet options to choose from (available here). The open AN-8 port needs to be plugged if using one of the setups where you use one fuel pump in combination with one fuel filter.

Nuke Performance Fuel Log 4-port collector, AN-8 ORB Specifications :
For more information about specifications, contact us directly.

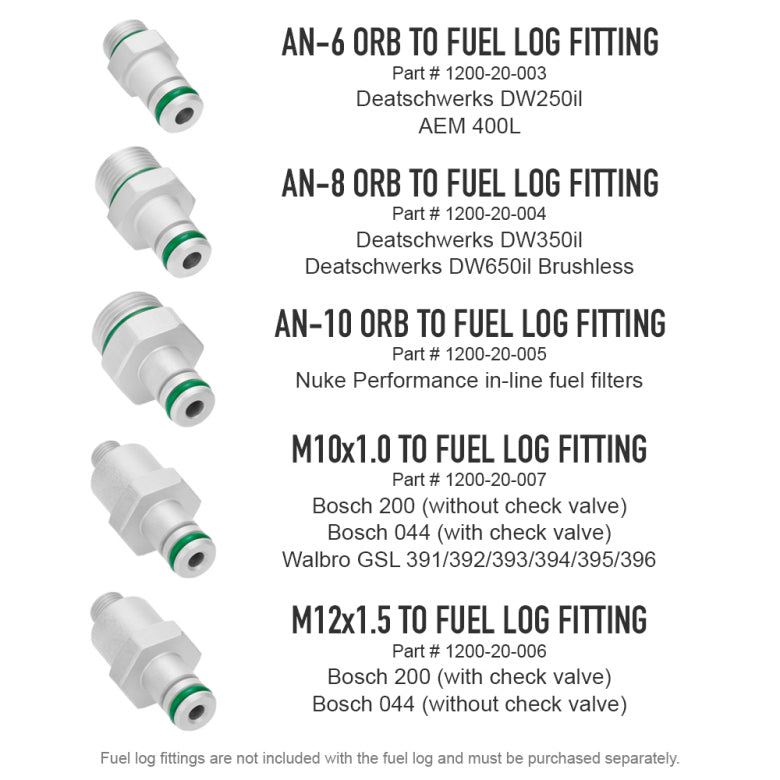

* fuel log fittings are not included with the fuel log and must be purchased separately.
** old 3/4 UNF generation which is no longer available for purchase.

 Nuke Performance Fuel Log 4-port collector, AN-8 ORB includes :
1 x Fuel log AN-8 ORB body

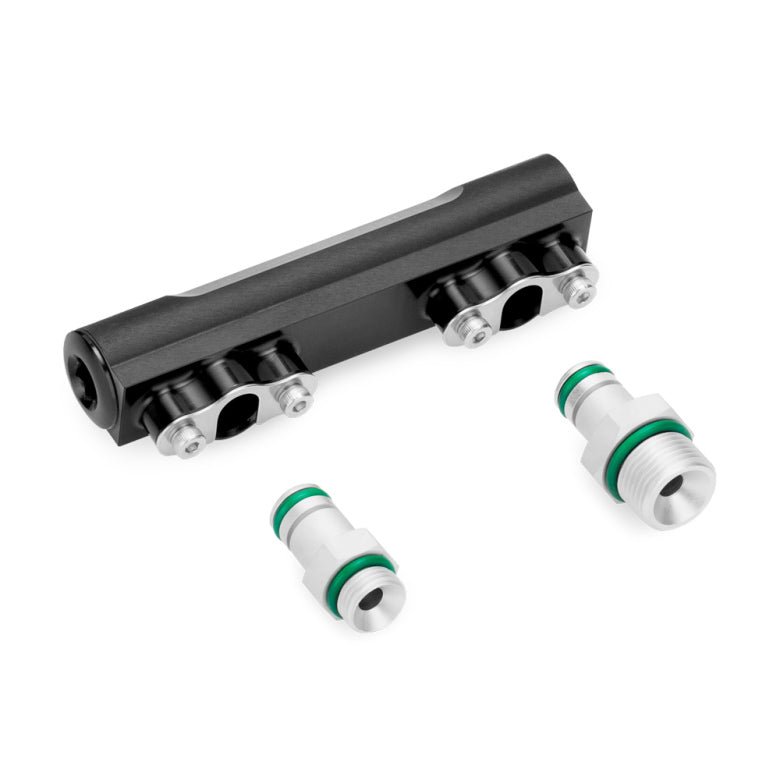

2 x Stainless steel mounting clips
4 x MC6S M4x6mm stainless steel bolts
1 x AN-8 ORB Plug
