Why Choose the 6” PDM Display
The 6" PDM display is a TFT dash display suitable for replacing all of the dashboard gauges and warning lamps.
Please Note: The 6" dash display is ONLY for use with Aim PDM kits and can not be used as a stand-alone dash display.

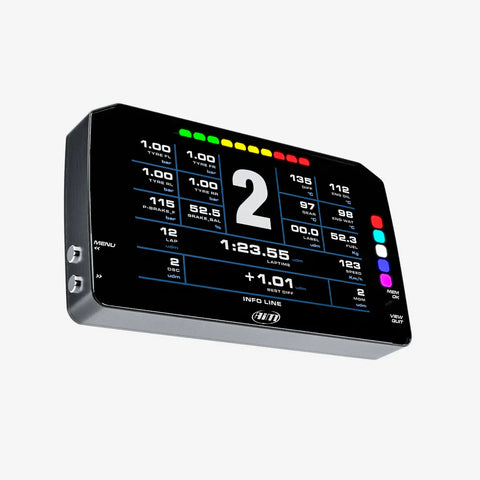

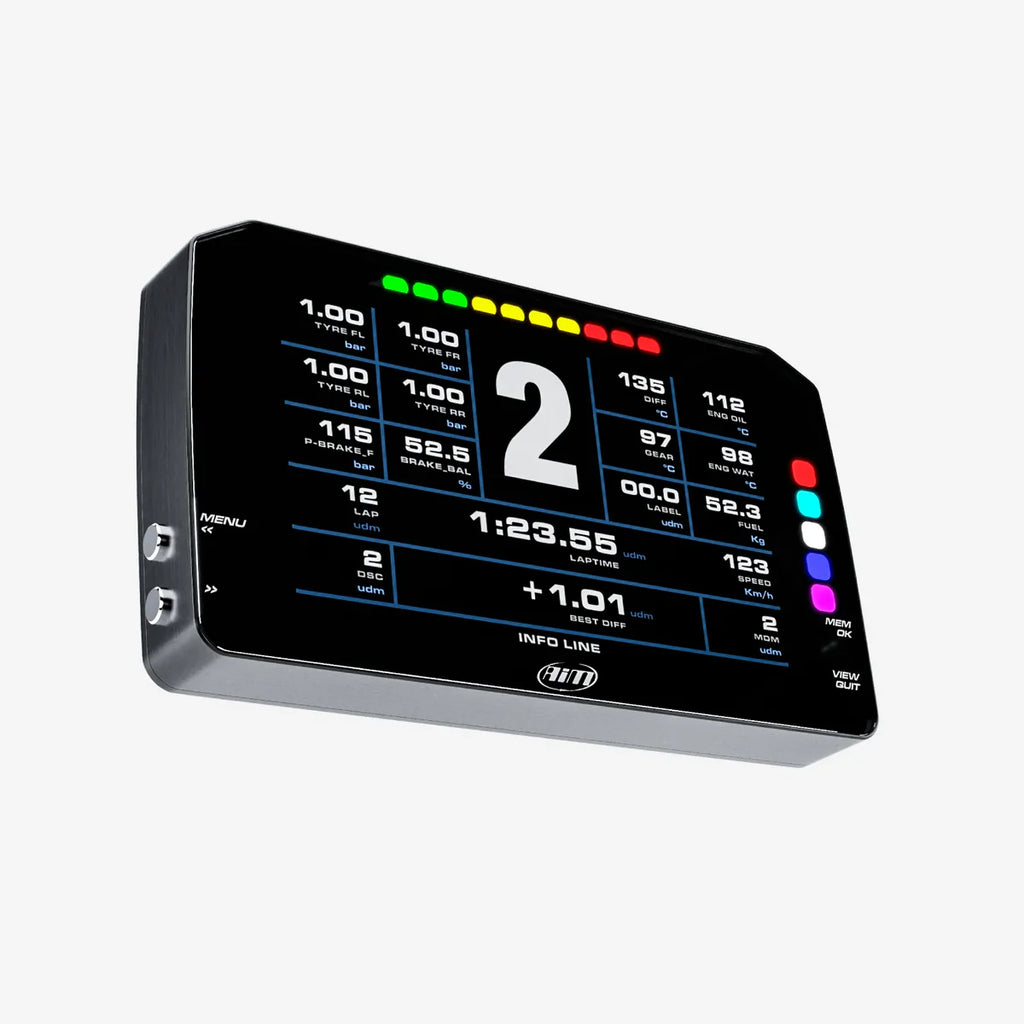

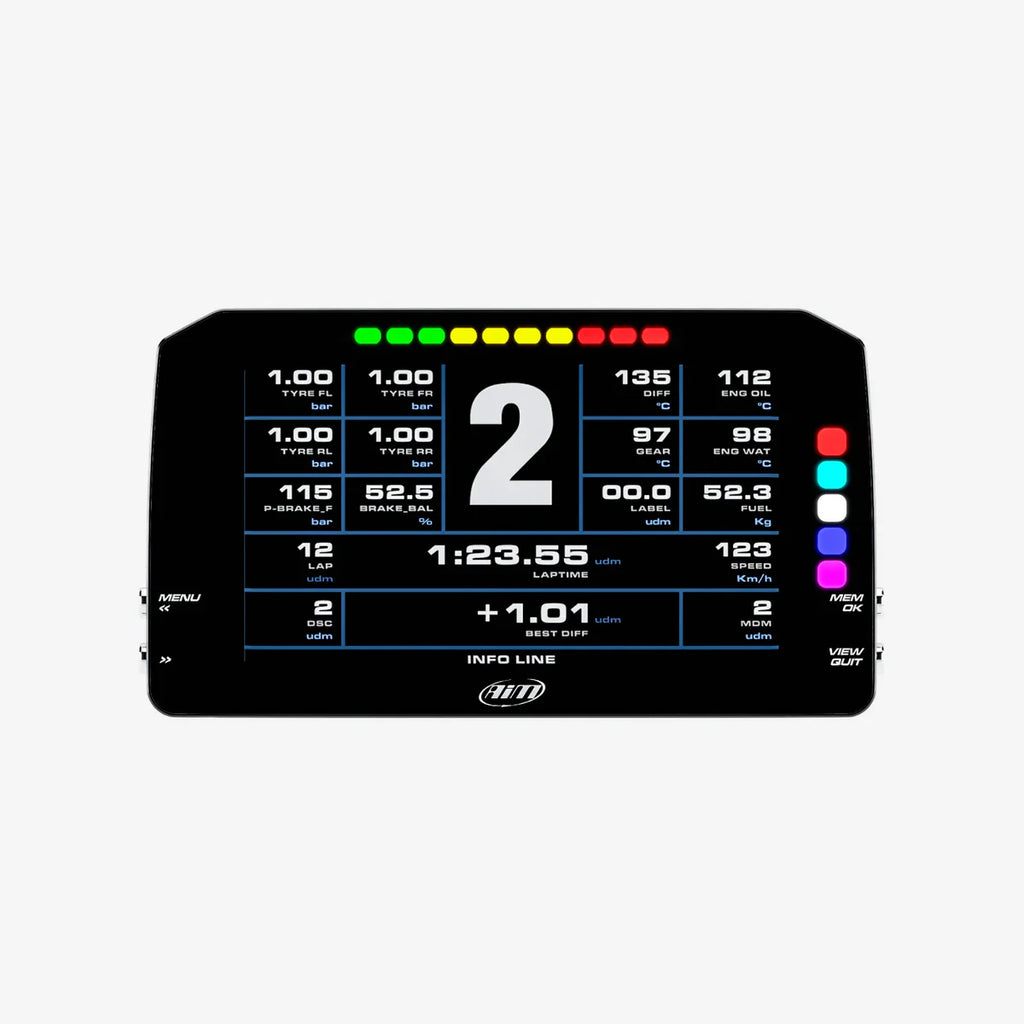

Display with Race Icons
The dash has a 6" TFT high contrast colour display. The visual quality is optimised by the ambient light sensor, which keeps the backlight at the best brightness levels.
Race icons allow you to apply conditions to the LED icons, such as fuel, engine, oil, lights and more.
Technical
Ambient Light Sensor: Yes
Status Information LEDs: 5 LEDs
Shift Lights: 10 integrated RGB LEDs
External Modules: GPS Module, Channel Expansions, TC Hub, Lambda Controllers, SmartyCam, Formula Steering Wheel Keypads
Body: Anodised aluminium
Push Buttons: Metallic

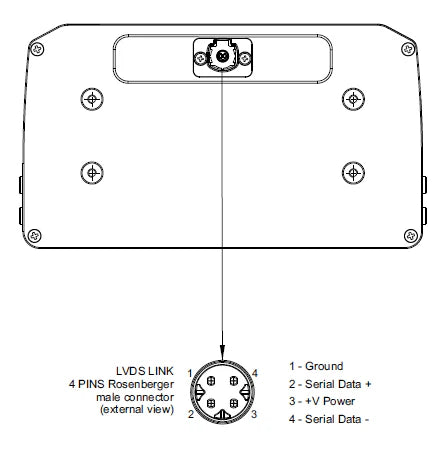

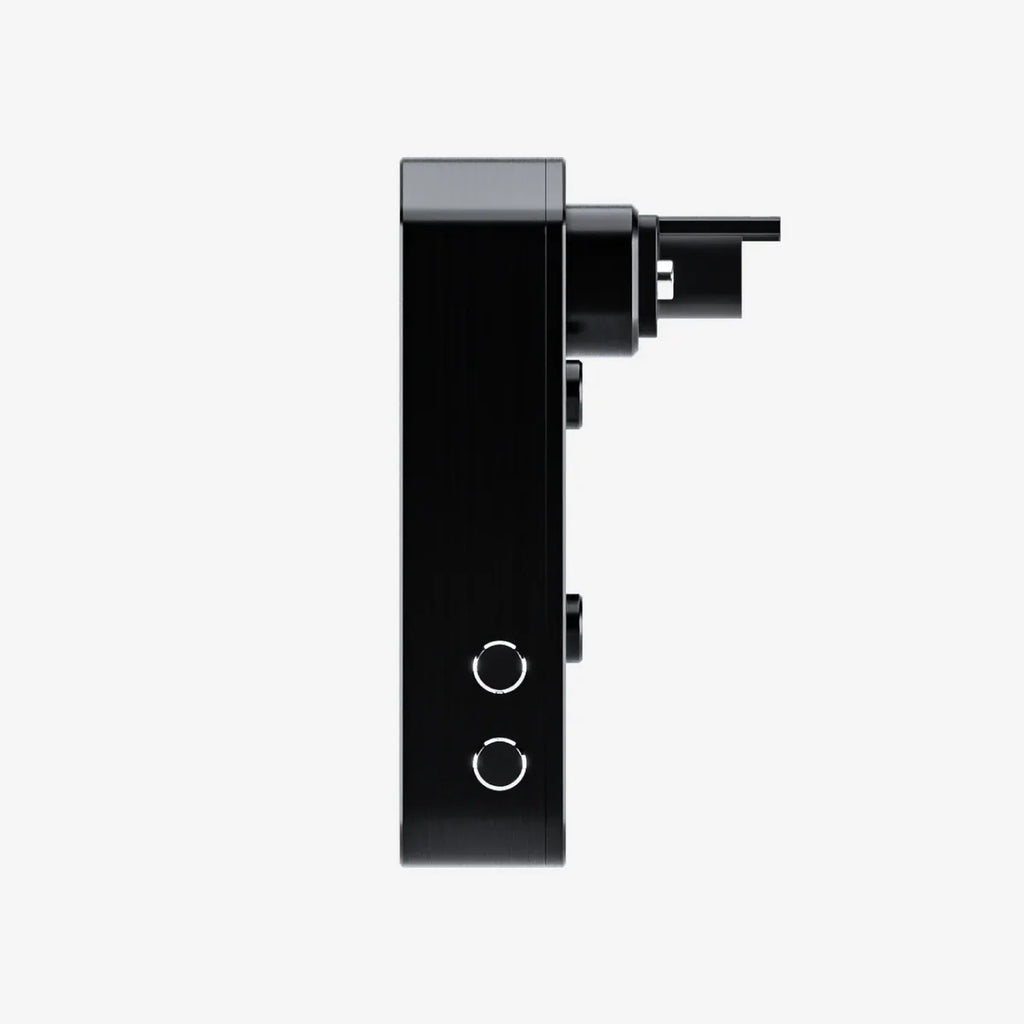

Connectors: LVDS Link 4-pin Rosenberger male connector
Power Consumption: 150mA
Display
Display: 6" TFT
Resolution: 800 x 480 pixels
Contrast: 600:1
Brightness: 700cd/m² - 1,100 Lumen
Size & Weight

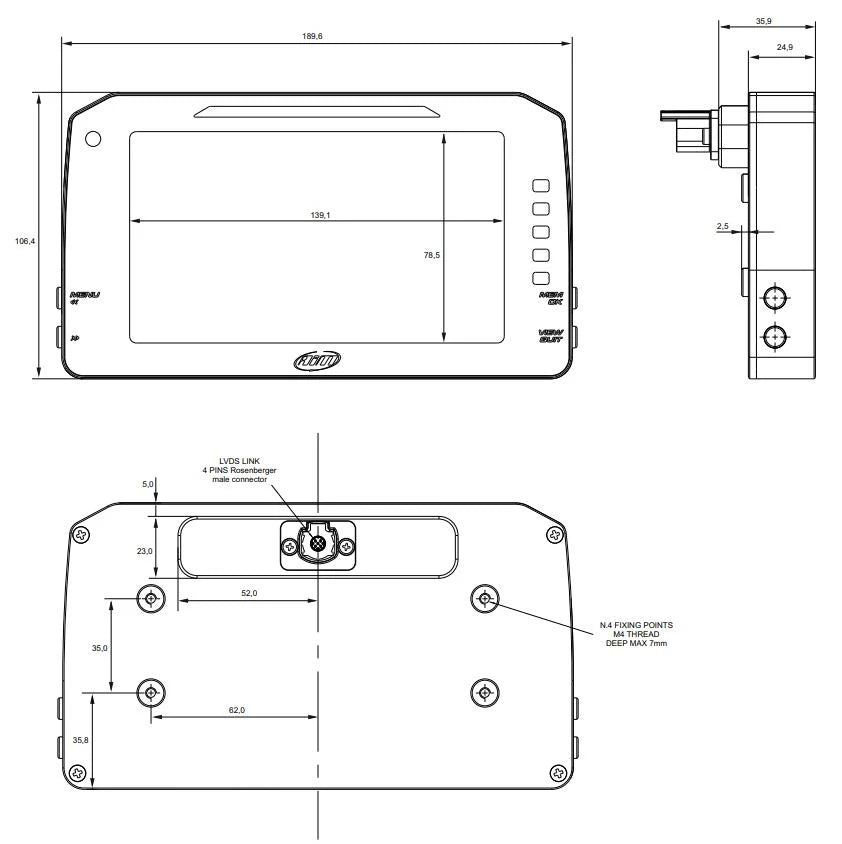

Dimensions: 189.6 x 106.4 x 24.9mm
Weight: 640g
Waterproof
IP65
