CARTEK PDM-4C

Small, lightweight, robust design – just 110g the new ‘mini’ Power Distribution Module from CARTEK has been designed to replace fuses and relays therefore simplifying the vehicles wiring. These mini Power Distribution Modules can be used as expansion units for larger PDM’s or can be used separately.

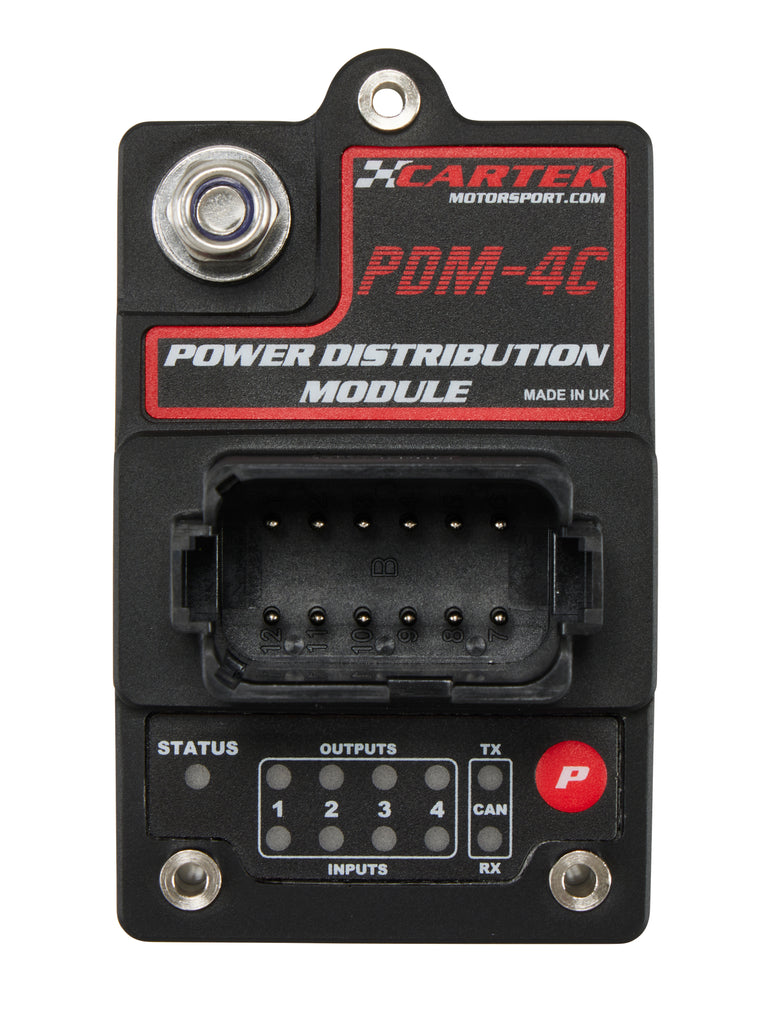

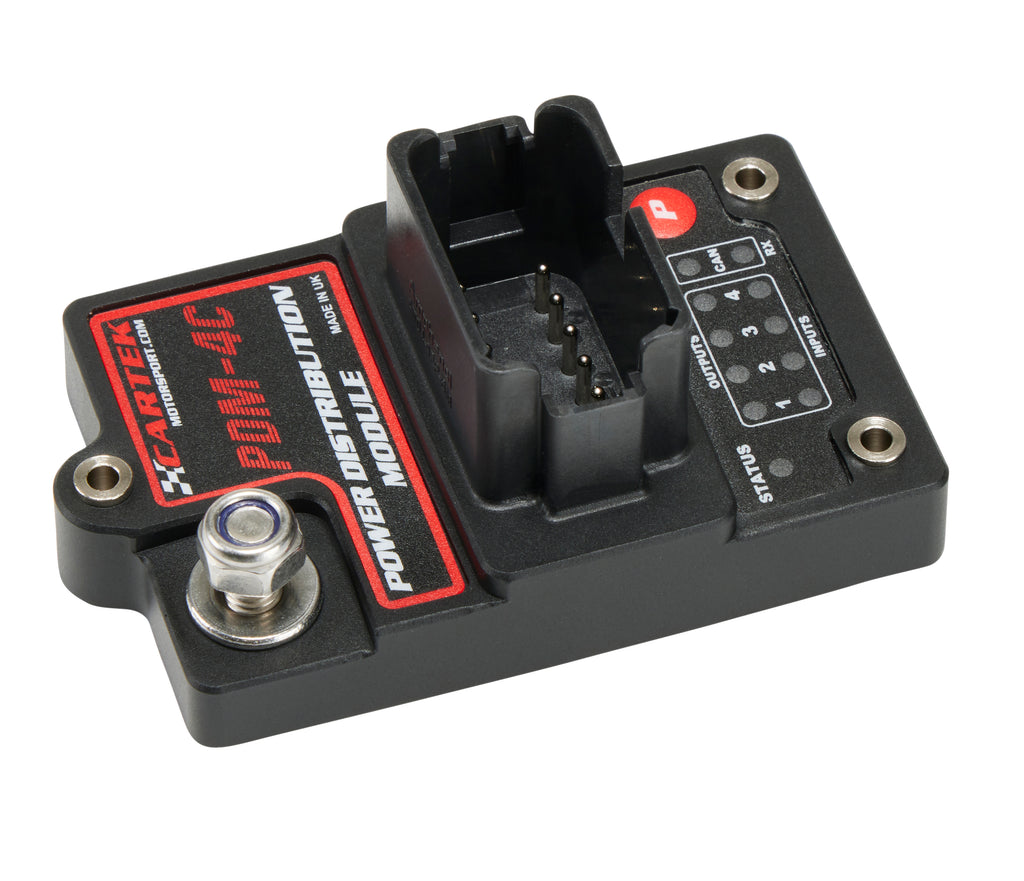

The PDM-4C is a configurable Power Distribution Module featuring 4 x 20A outputs with CAN-Bus connectivity. Individual outputs can be controlled through CAN and live diagnostic data can be streamed.

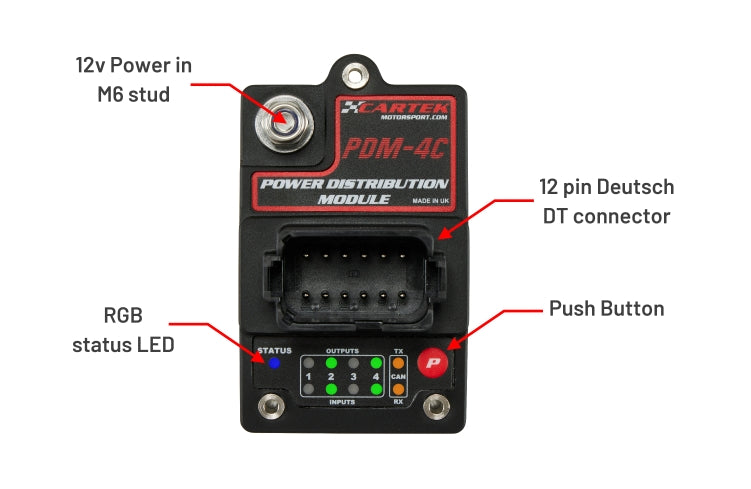

Main Features:

• Fully potted for protection from water and dirt, shock and vibration.
• All connections via sealed 12 pin Deutsch DT connector.
• Maximum output current can be configured in 5A steps (20A max) per channel.
  Selectable ‘Soft Start’ option for driving devices with high inrush such as fans or pumps.
  Outputs can be combined for higher current.
• Tripped outputs can be reset by either performing a power cycle or by pressing the button on the PDM device.
• Control inputs can be configured for high or low level signal activation, rising edge or falling edge triggers, or PWM input signals (200hz max).
• Outputs have selectable functions including Flashing (for indicators), Time delay On (for heated screens etc), Time delay Off (to operate fans when car is switched off).
• PDM has a configurable ‘Aux’ Input pin that can act as an Ignition input e.g. signal from Battery Isolator, master switch or ignition switch.
• RGB status LED’s on PDM indicate status of Inputs and Outputs.
• All programming is through integrated pushbutton on PDM – no laptop required.
• PDM-04C has four power outputs plus CAN Bus connectivity for transmitting diagnostic data including output status, volts, amp

Kit Contents

• 1 x PDM (CK-PDM-4C)
• 1 x MATING CONNECTOR HOUSING
• 12 x CRIMPS

Downloads

CARTEK PDM-4C CAN Transmit DBC Files
CARTEK PDM-5 User Manual
