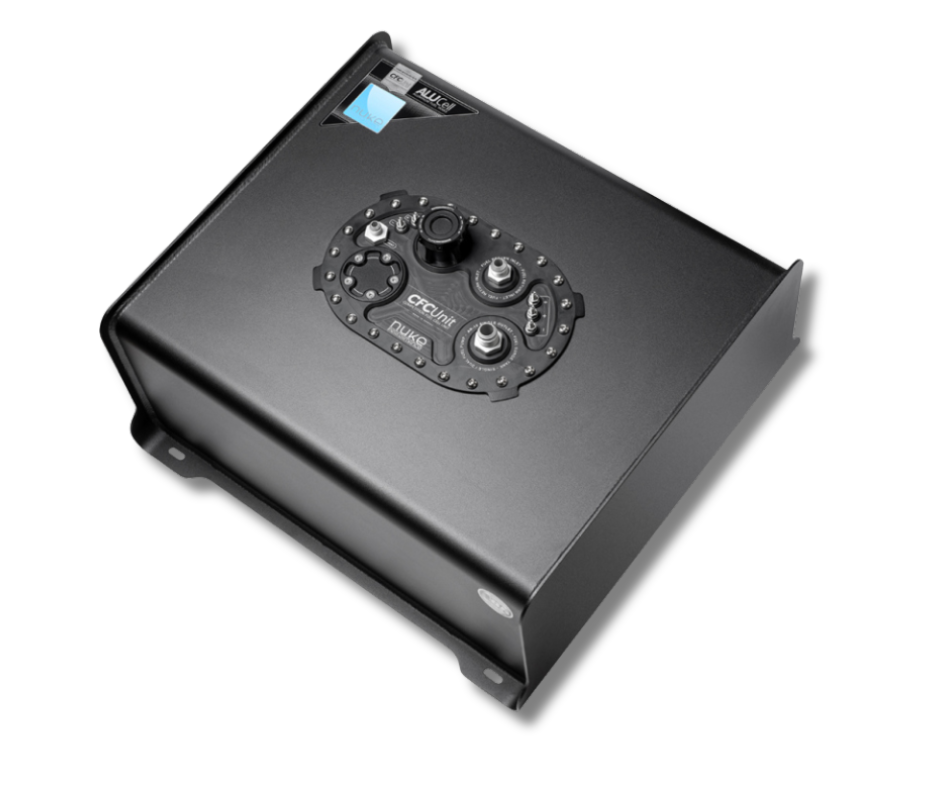

AluCell Fuel Cell and Nuke Performance CFC Unit - 60 Liter

AluCell Aluminum Fuel Cells, a lightweight and affordable fuel cell combined with the Nuke Performance drop-in surge tank, the CFC Unit.

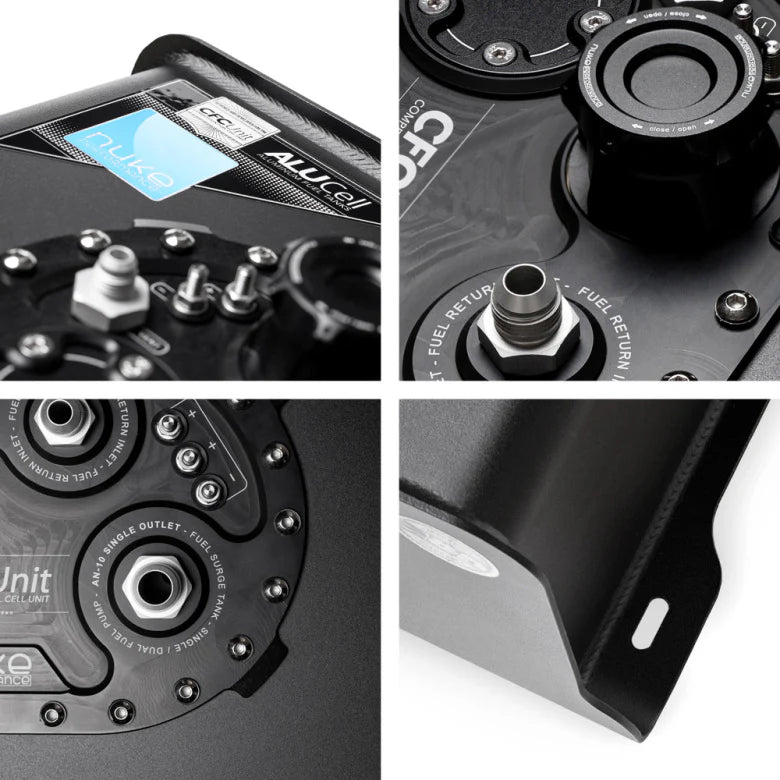

This product offers an affordable solution for those who do not require FIA approval for professional racing, but still want all the benefits from the Nuke Performance CFC Unit. The drop-in fuel pump hanger with integrated surge tank provides this functionality featuring:

• 60 liter aluminum fuel cell
• Integrated 2.0 liter Fuel Surge Tank function
• Safe for all types of fuels, including E85
• Integrated brackets for easy and secure mounting
• Fits single or dual high-pressure fuel pumps
• A single oversized AN-10 ORB outlet, for maximal flow
• Low-profile fuel filler cap with integrated roll-over valve

AluCell Specifications

For more information about specifications, view the product manual.

AluCell Fuel Cell Kit includes:

1 x AluCell Aluminum fuel cell 60-liter
1 x Nuke Performance CFC Unit - low profile version
2 x 1/4" BSPP to Male barb 8mm hose fittings
1 x 1/4" BSPP plug, when using only one high-pressure fuel pump
2 x 39mm inserts for high-pressure fuel pump bracket
1 x Viton gasket for 24 bolt pattern fuel cells (safe for alcoholic fuels)
1 x Low profile filler cap (remote fill neck available as accessory)
1 x Dual billet fuel pump bracket and adjustable pickup pump mount
1 x AN-8 (3/4 UNF) to AN-6 Male vent safety valve
1 x FLS spacer, used for fuel level senders with a not symmetrical bolt pattern
24 x 1/4-28 UNF x 1 bolts with nylon washers

 Download User Manual (.pdf)
 Download Assembly Information (.pdf)
