The CES (Continental Engineering Services) motorsports ABS unit, based on the high-performance MK100 ABS platform, has been designed for all types of racing vehicles. Continental’s new software approach provides the best braking performance in-class outperforming our competitors on bumpy courses such as the Nurburgring Nordschleife.
Lead times: 3-4 weeks.
Available on backorder
System Overview

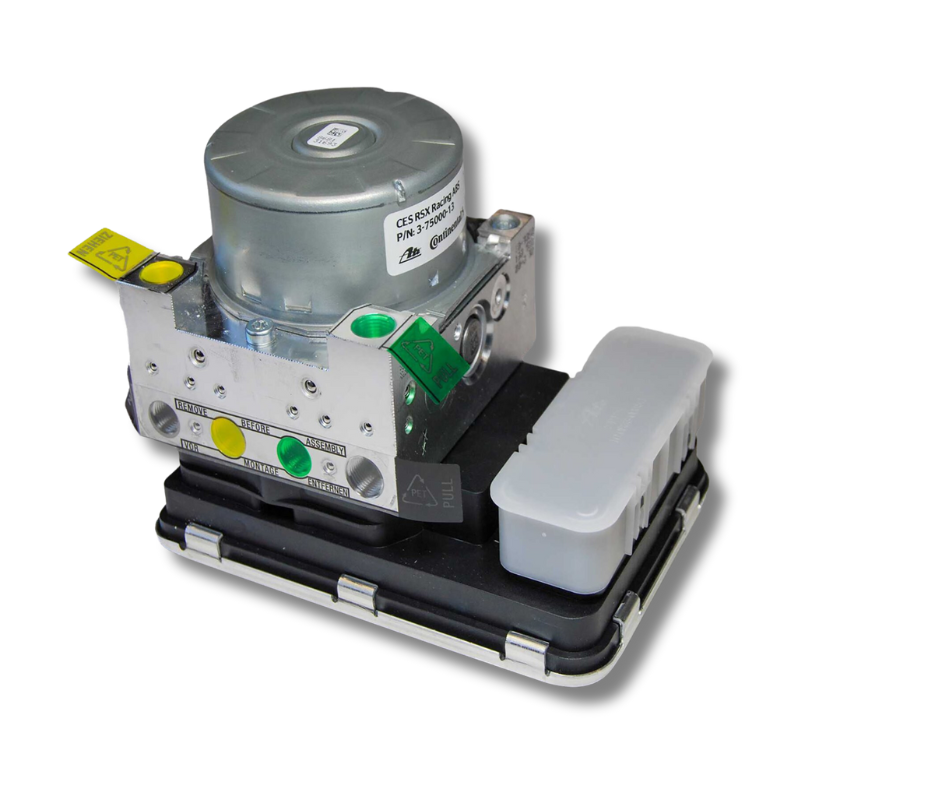

- ABS unit assembly (HECU)
- Weight: 1990 g
- Dimensions: 154 x 105 x 111 mm³
- Software Functions included with Kit
- Racing ABS (Anti-lock Braking System), tuned to maximum performance under racing conditions
- Selection of 12 modes (max. stability to overall performance)
- Independent function-OFF-switch
- The setting of vehicle parameters by the usage of a set-up tool
- Software Functions with CES Custom Brake Application
- Racing Torque Vectoring optionally
- Racing AYC (Active Yaw Control) optional
- Electronic Control Unit (ECU) – Outputs:
- 1x Vehicle CAN Interface (adjustable to 500kBit/s or 1Mbit/s)
- Wheel Speeds (FL, FR, RL, RR)
- Accelerations (X, Y, Z; -5g … +5g)
- Angular rates (X, Y, Z; -156°/s … +156°/s)
- Brake circuit pressures (Front, Rear)
- Function activation flags
- Mode selection states
- Function disable flags
- Warning lamps
- Hardwired outputs
- Warning lamps
- Vehicle speed
- Brake light
Electronic Control Unit (ECU) – Inputs:
- 1x Private CAN Interface
- Steering Wheel Angle Sensor
- Inertial Measurement Unit (IMU)
- 4x Active Wheel speed sensors (not included)
- 1x External brake pressure sensor
- 1x 12-Position rotary switch (mode selection)
- 2x Push button switch (function disabling, not included)
- Electronic Control Unit (ECU) – Outputs:Hydraulic Control Unit (HCU)
- Brake circuit split: Front/Rear (allows the usage of brake balance bars)
- Unit will be delivered pre-filled. (No complex fill & bleed procedure necessary) Conventional bleeding of the brake system is sufficient

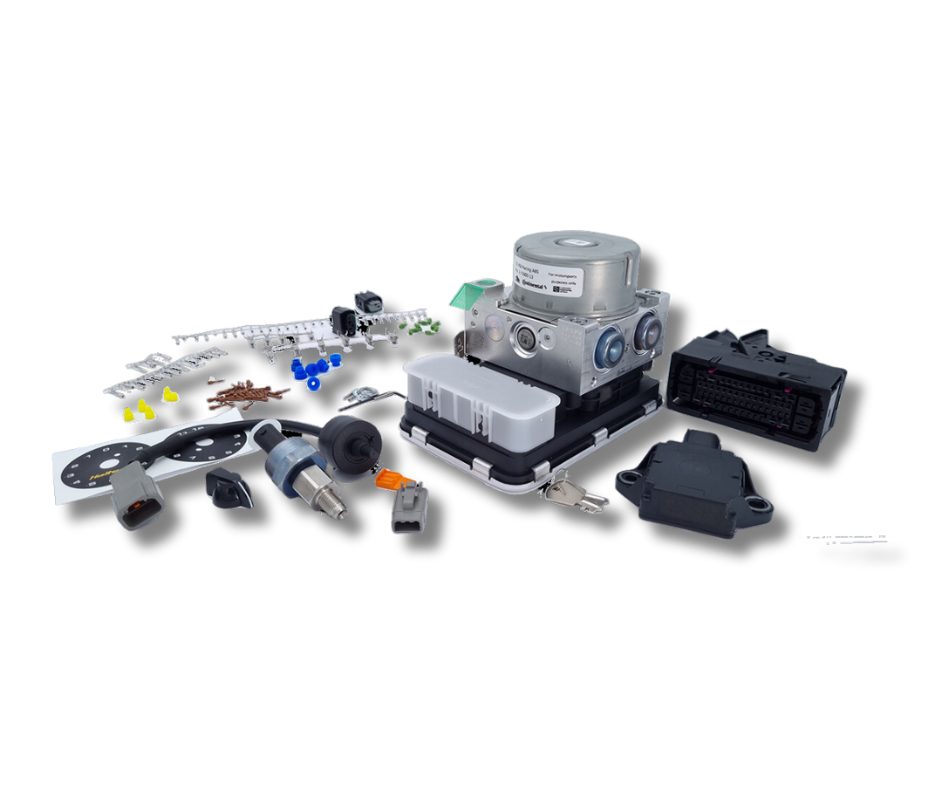

Kit Contents
- Pre-Filled Hydraulic Electronic Control Unit (HECU)

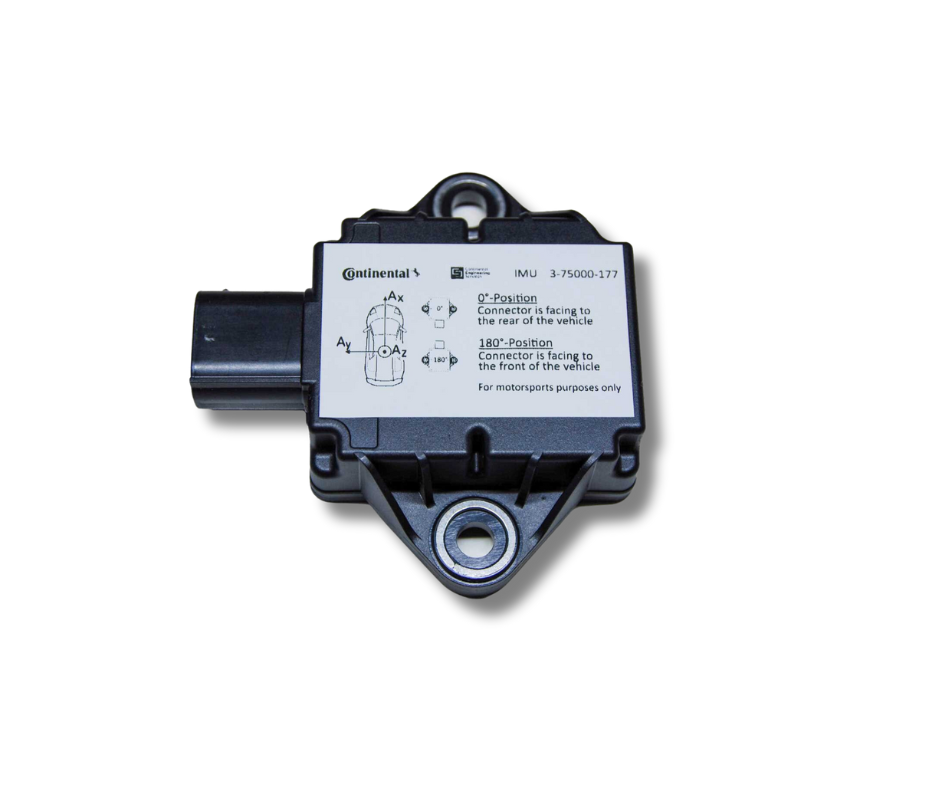

- Inertial Measurement Unit (IMU)

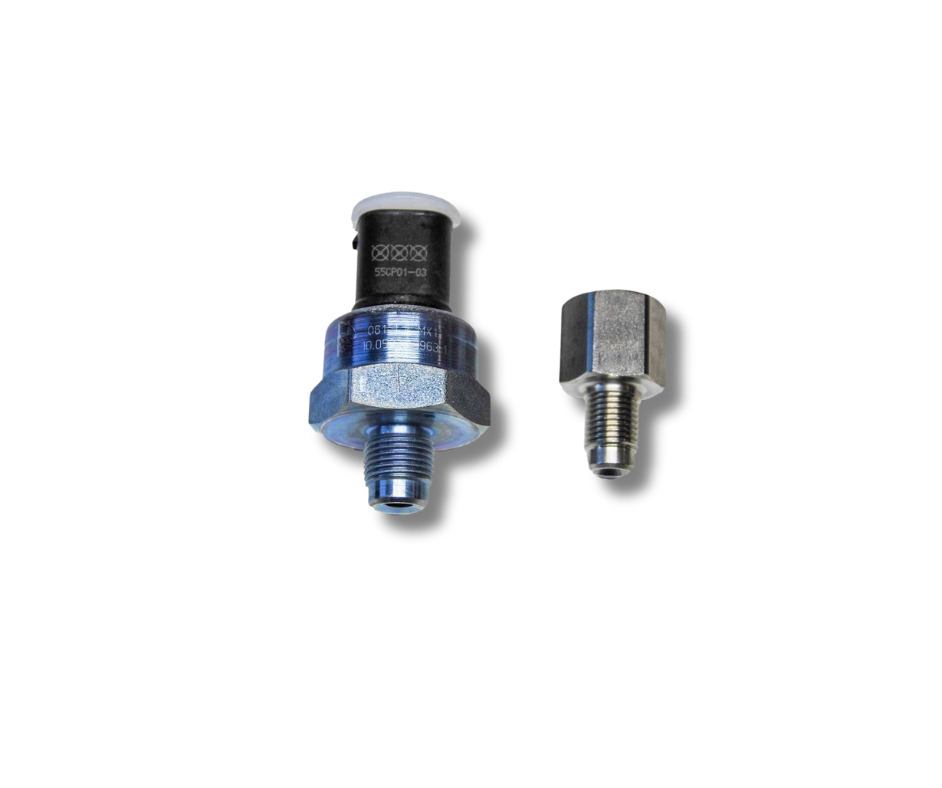

- External Pressure Sensor

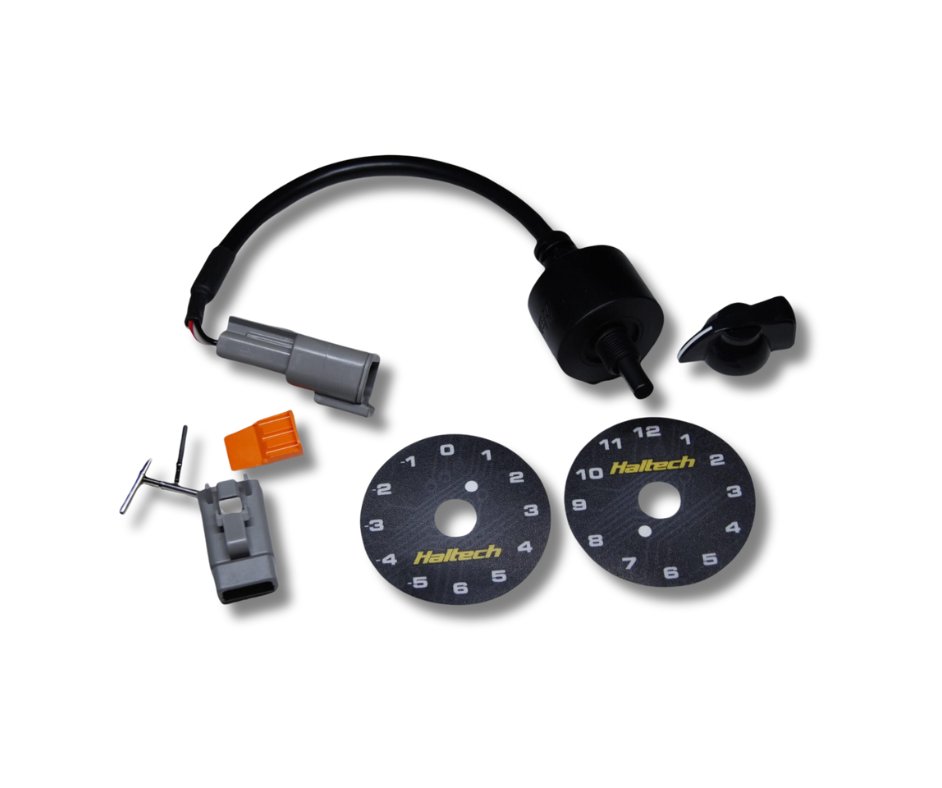

- One 12 position rotary switch

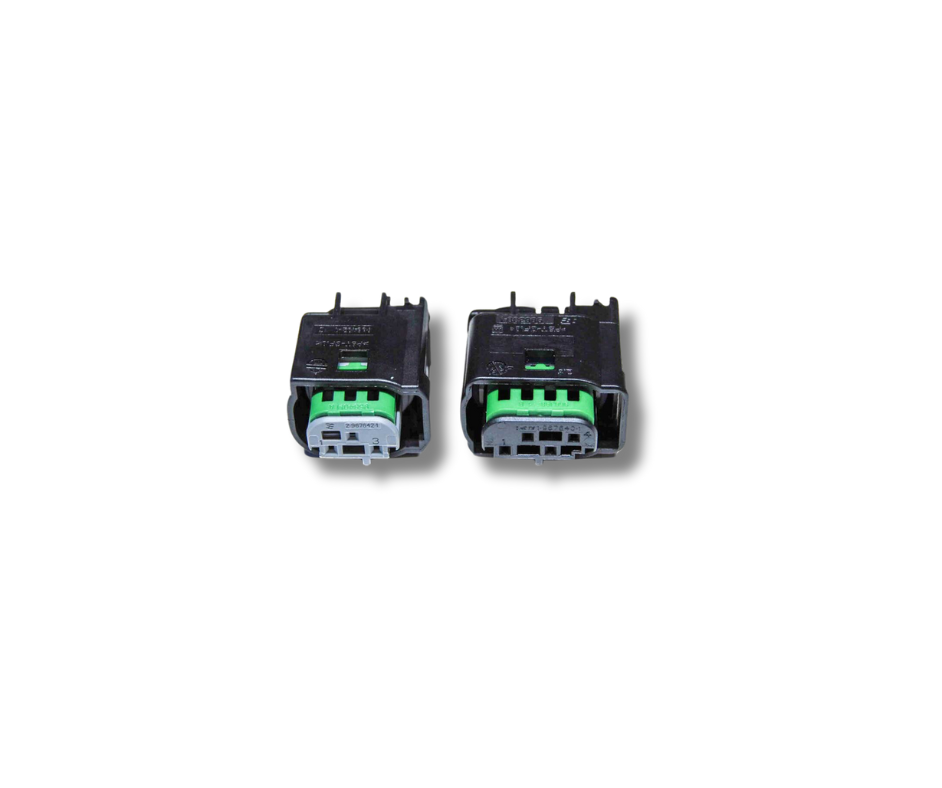

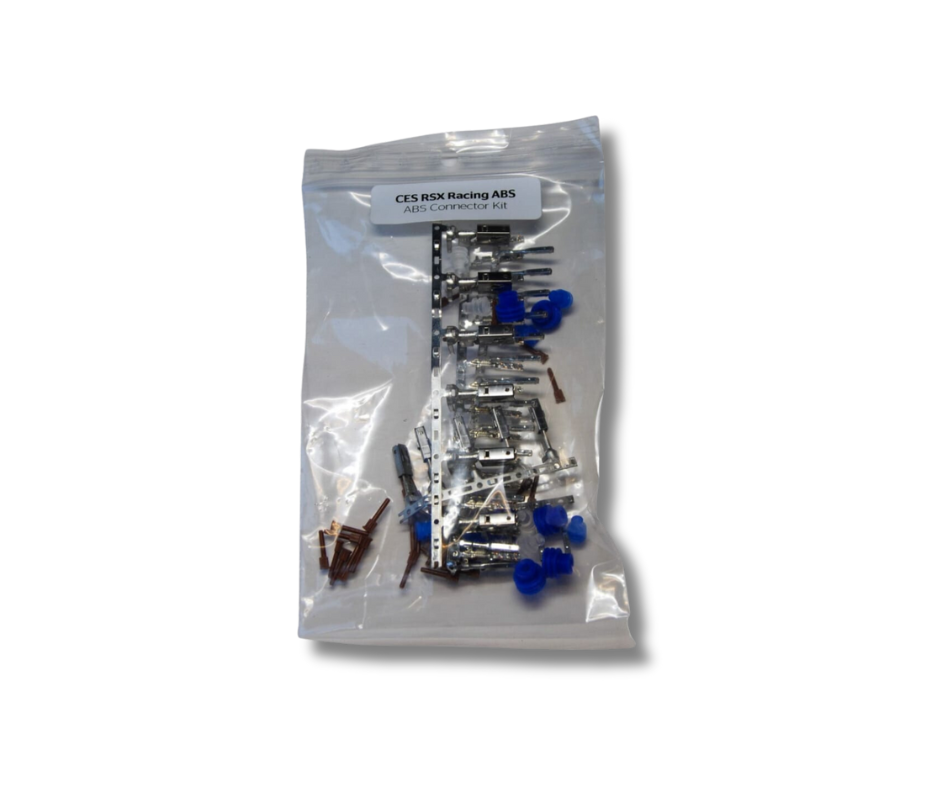

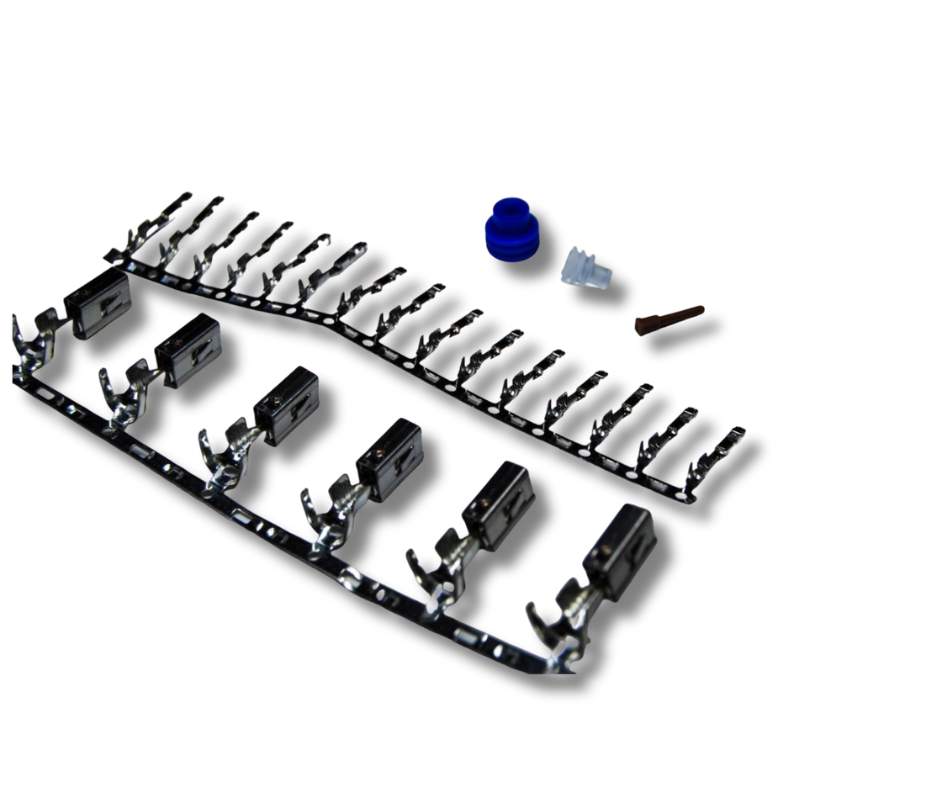

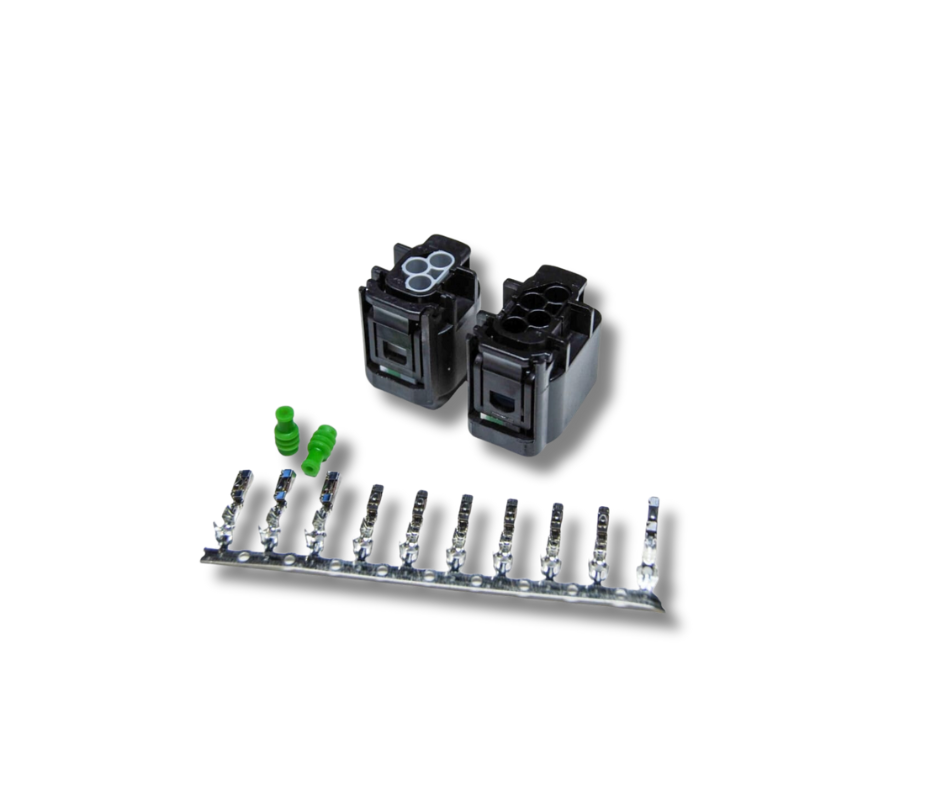

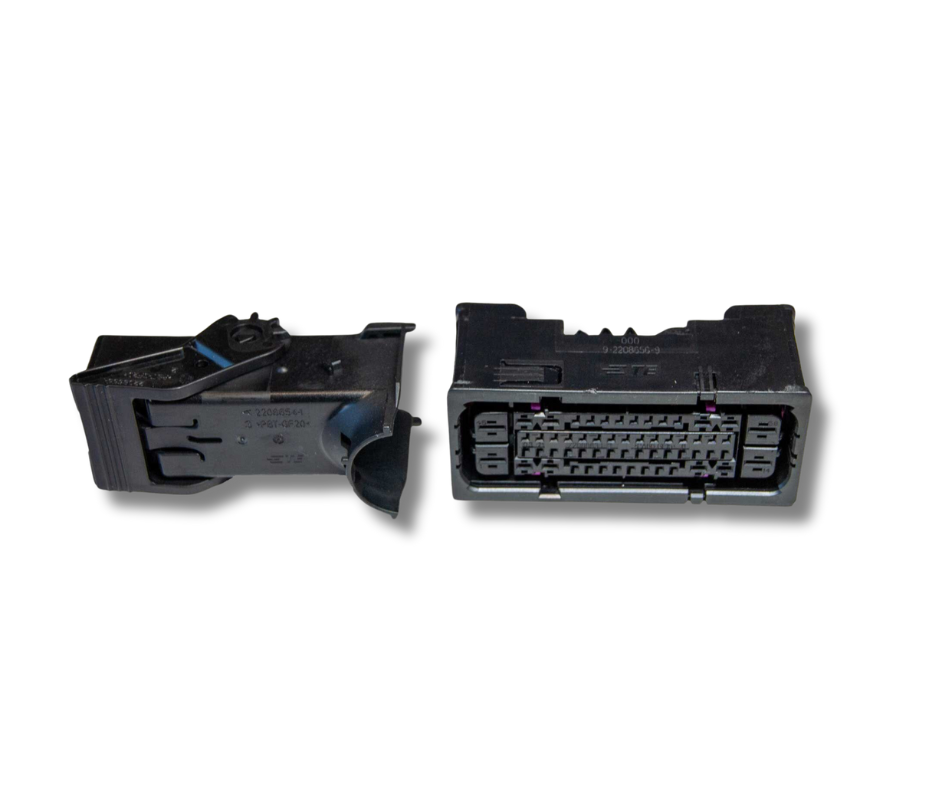

- Three electrical connectors for IMU, ECU and external pressure sensor

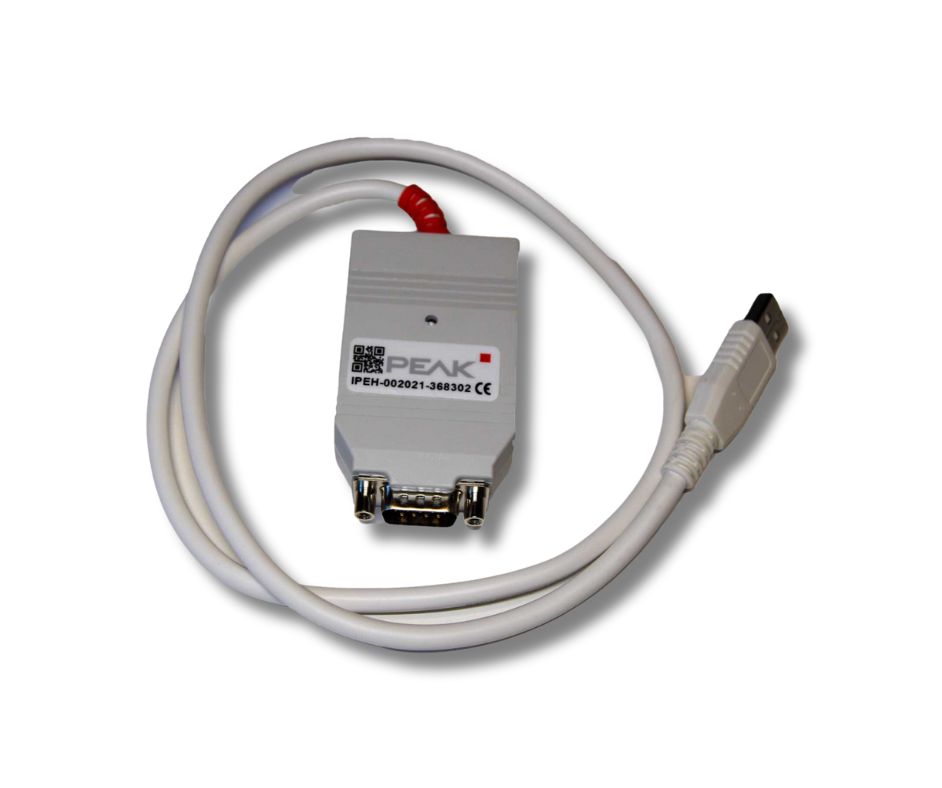

- SW Configuration tool
- Installation and user manual
Downloads
Click here to download the ABS Manual V1.1.
Click here to download the ECU Connector Instruction Sheet.
Click here to download the ABS Kit Technical Outline.
Click here to download the Configuration Software.
