Ecumaster ADU

  • Sale
  • Regular price €1.010,00

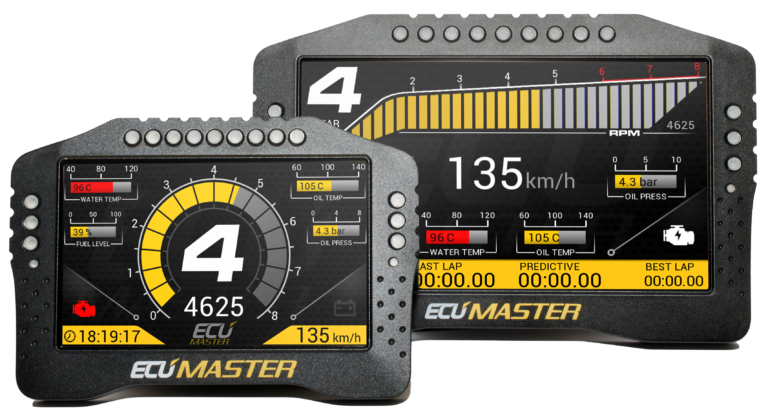

Ecumaster Advanced Display Units are available in 5” and 7” versions. Both versions feature high resolution, high visibility anti-glare screens, guaranteeing perfect visibility in any lighting conditions. The ADU comes with multiple pre-configured pages, which can be customized by the end user to display data required at every race stage (e.g. practice, qualification, race, troubleshooting, etc.). Pages may be changed manually or automatically (based on defined conditions). Each channel displayed on a page (gauges, icons, texts, etc.) can be easily modified in real time using user-friendly Windows based software. The comprehensive overlay system facilitates a multiple page display for important data (e.g. low oil pressure, best lap, etc.) independent of the actual page displayed.

 The ADU is also equipped with 15 ultra-bright RGB LEDs which can be used as an advanced gear-dependent shift light and can be modified by user-defined logic (for alarms, low fuel level, etc.).

Using IR beacons or a GPS system, the dash turns into a powerful lap timer with a predictive timing function. By selecting the Qualification page, you enable a “Qualification Mode” which uses advanced predictive lap timing based on an automatically updated “best” reference lap.

User configurable timers can be adjusted for additional functionality (pit stop timer, etc.). The ADU also supports thermal cameras for monitoring brake discs or tyre temperatures (up to 16 points per tyre).
Communication with other devices in the car is provided via two built-in, independent CAN-BUS communication ports. CAN templates are provided for most popular ECUs, and are fully configurable, allowing you to connect Ecumaster hardware to virtually any engine management system.


To ensure that all features work seamlessly, the device is based on a 32-bit automotive controller paired with a state of the art graphics processor. This combination provides the perfect working environment for any engineer or driver and guarantees anti-aliased, high-quality graphics at 50 frames per second.
For further data analysis, data channels can be logged to a USB Flash drive with a frequency of up to 500Hz.
All of these “Must Have” features and more are housed in a rugged, specially CNC machined, black anodized enclosure.

Download Files

Software:

ADU software package 104.1 (2024/08/23)
Change log

Manuals:

ADU User Manual English 104.1
How-to Use Virtual Fuel Tank in ADU
How-to Configure 5x3MT Encoders in ADU
How-to Configure the Hill Climb in ADU
How-to Configure PMU CAN Stream in ADU
How-to Merge Projects in ADU
How-to Configure Autosaved Channels in ADU

Pinout:

Pinout ADU
Pinout ADUAS

Technical Drawings:

ADU CAD data
ADU REV 2 CAD data
Drawings – ADU5″Rev.2
Drawings – ADU7″Rev.2
Drawnigs – ADU7″AS-Rev.1



Free, easy to install firmware upgrades further improve system capabilities (e.g. new strategies, CAN data streams).

Supported ECUs

If your ECU is not listed above please send an email to tech@ecumaster.com.

SPECIFICATION

GENERAL

Temperature range AECQ100 GRADE3 (-40 to +85˚C)
Reverse battery protection Yes, internal
Operating voltage 6-22V, immunity to transients according to ISO 7637
Enclosure Rev.1 ->IP 60, custom CNC machined aluminum



Rev.2 ->IP 65, custom CNC machined aluminum (sealed)

ADU7″ AS ->IP 60, custom CNC machined aluminum

Connectors 1 x 35 positions, AMP Automotive connector
PC communication CAN BUS – Ecumaster interface, Peak or Kvaser
Display Type TFT 800×480
Brightness of display 5″ – 600 cd/m2, 7″ – 1000 cd/m2
Weight 5″ – 408 g ,  7″ – 732 g

INPUTS / OUTPUTS

Analogue inputs 8 inputs, 10 bits, 0-5 V, software controlled pull-up/pull-down 10K resistor. All analogue inputs can be used as a switches
Digital inputs 8 digital inputs, software controlled input sensitivity (VR, Hall), software controlled 4K7 pull-up resistors, used for engine speed sensors, Flex Fuel, wheel speeds, turbocharger shaft speed. All digital inputs can be used as switches
Outputs 2 low side outputs (switch to ground), up to 2A, 1 analogue output (0-5V) 10 bits
+5V Output Monitored 5V output for powering external sensors

COMMUNICATION

CAN Interface 2 x CAN2.0 A/B, 250, 500, 1000 Kbps
CAN streams User-defined
Serial communication RS232 Rx/Tx, AiM protocols, Ecumaster, Hondata Kpro, Autronic
USB Used for logging to external USB memory

OTHERS

Light Emitting Diodes 15 ultra bright RGB LEDs
Accelerometer/gyroscope 3D accelerometer + 3D gyroscope for the analysis of vehicle dynamics
Real-time clock Yes, battery powered
Light sensor Yes, for automatic correction of brightness
Temperature sensor Yes, for monitoring device temperature
