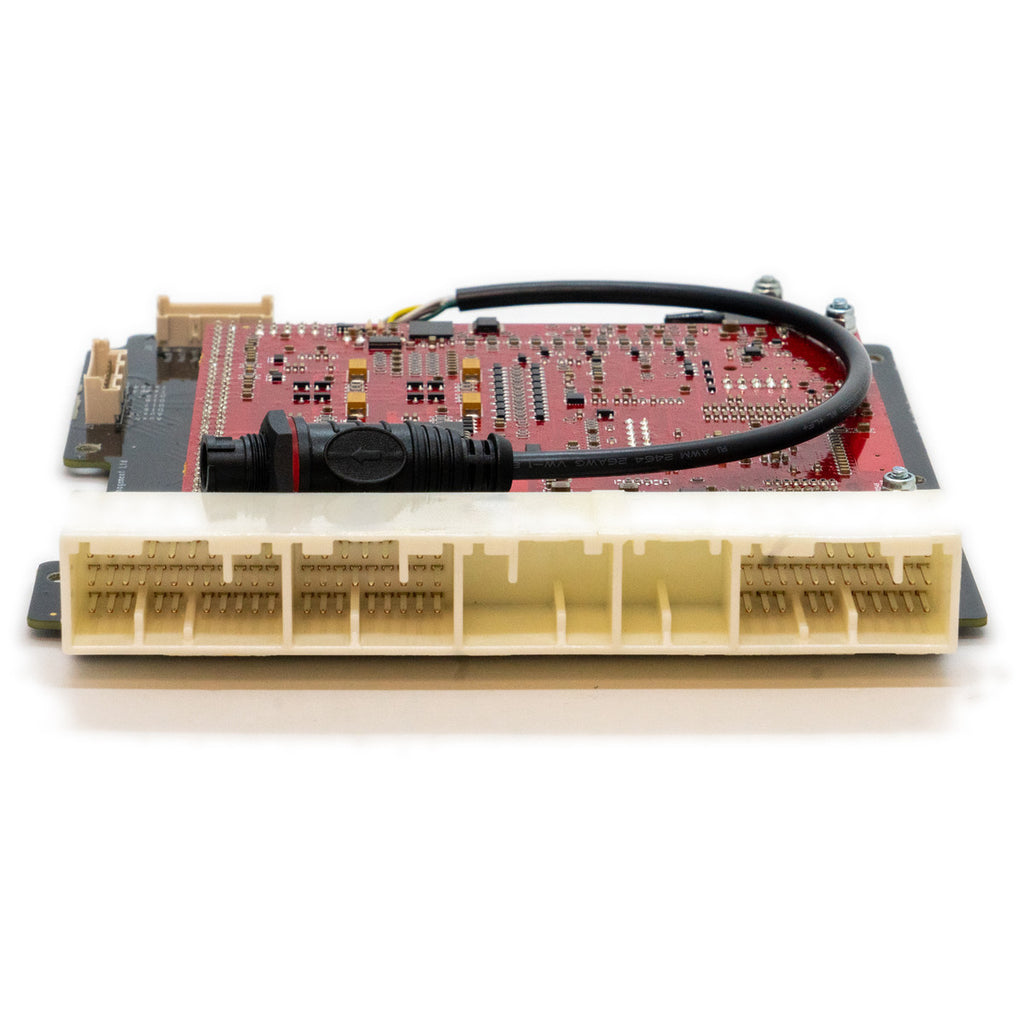

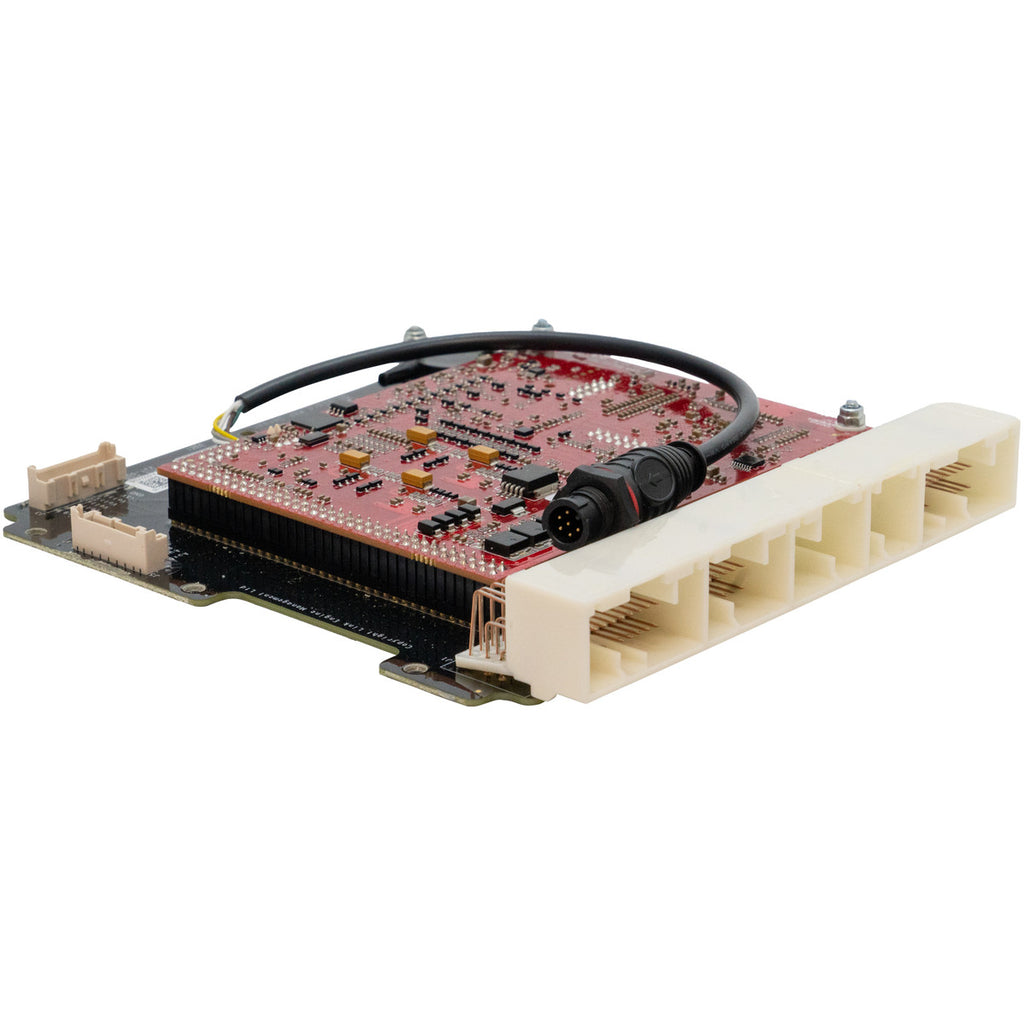

Designed for the K20A engine.
- Please check your connector matches the header in the listed photo before purchasing.
- This ECU works for manual transmissions only.
- ECU includes an onboard 7 bar MAP sensor.
- Most factory features are supported.
Check the features tab for I/O expansion options
Note: This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection. Use the CANJST4 (Code 101-0198) cable for connecting CAN devices. This new 4 pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices. The power supply is protected by a self-resetting fuse rated at 3A continuous.
Suitable applications (Manual Transmission only):
Honda Integra Type R DC5 2002-2004 with K20A/K20A2/K20A3 Engine
Acura RSX 2002-2004 with K20A/K20A2/K20A3 Engine
Honda Civic Type R EP3 2001-2005 with K20A Engine
Honda Civic Si/SiR 2001-2005 with K20A3
Honda Civic DX/LX/HX 2001-2005 with D17A1/A2/A3 Engine
Honda CR-V 2002-2004 with K24A1 Engine
